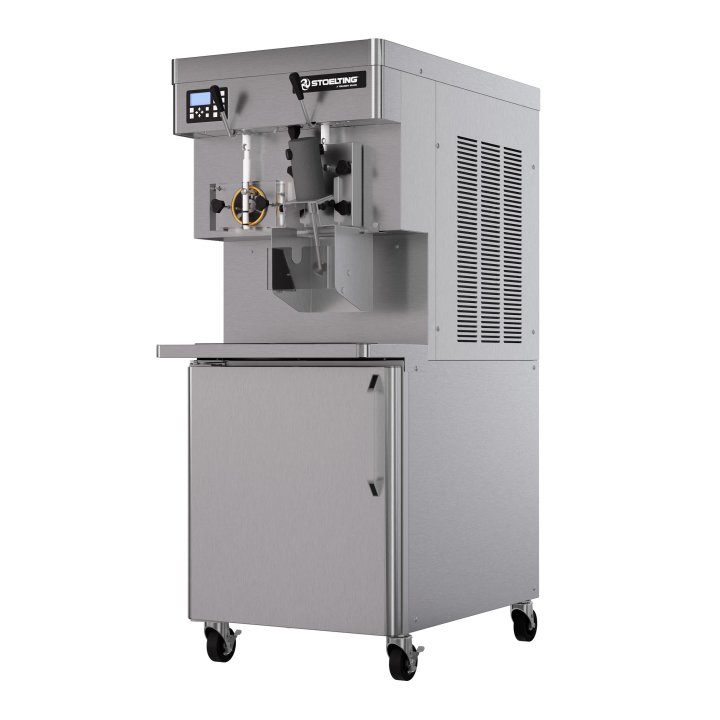

208- to 240-volt 3-phase air-cooled high-capacity combination soft serve and shake machine with refrigerated cabinet and built-in mixer

Deliver consistent, smooth soft serve from the left and thick, creamy shakes from the right with the ease and versatility of a high-capacity, combination soft serve and shake machine. This 208- to 240-volt, 3-phase, air-cooled unit provides greater reliability and whisper-quiet operation, thanks to the Stoelting® high-efficiency evaporator system and Scroll™ compressor. Meanwhile, the refrigerated mix storage cabinet features a slide-out shelf to hold two 8-gallon-mix containers. Plus, the mix pump injects a precise amount of air into the mix, maintaining consistent overrun and maximizing profitability with clean-in-place simplicity. Our proprietary auger design gently folds mix, preventing product breakdown to produce a smoother, creamier product.

208- to 240-volt, 3-phase, air-cooled
A convenient and cost-effective way to dispense outstanding soft serve from the left side and thick creamy shakes on the right, all in one unit
Enjoy maximum reliability and quieter operation with high-efficiency evaporator and Scroll™ compressor
Refrigerated mix storage cabinet features a slide-out shelf to hold two 8-gallon-mix containers
Mix pump injects a precise amount of air into the mix, maintaining consistent overrun and maximizing profitability with clean-in-place simplicity
Reduces labor with a simple, clean-in-place pump
Proprietary auger design gently folds mix to prevent product breakdown for a smoother, creamier product
Durable, heavy-duty parts reduce maintenance costs

Product Specifications

Model Information

Name	Value
UPC	671080356402

Unit Dimensions

Name	Value
Overall Dimensions (IN)	26-3/4 x 40 x 67-1/2
(W) Width (IN)	26.75
(D) Depth (IN)	40
(H) Height (IN)	67.5
Overall Dimensions (CM)	67.9 x 101.6 x 171.5
(W) Width (CM)	67.9
(D) Depth (CM)	101.6
(H) Height (CM)	171.5

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	Yes
Hz	60
Maximum Overcurrent Protection Device Amps (Per Barrel): Left	30
Maximum Overcurrent Protection Device Amps (Per Barrel): Right	30
Minimum Circuit Ampacity (Per Barrel): Left	21.8
Minimum Circuit Ampacity (Per Barrel): Right	21.7
Phase	3
Plug Connection	No
Voltage	208-240

Volume

Name	Value
Cabinet Capacity (GAL)	8
Cabinet Capacity (L)	30.3

Weight

Name	Value
Weight (LB)	760
Weight (KG)	344.7

Frozen Treat: General Specifications

Name	Value
Cooling	Water
Drive Motor: Soft Serve (hp)	2
Drive Motor: Shake (hp)	3/4
Number of Freezing Cylinders	2
Number of Freezing Cylinder Compressors	2
Freezing Cylinder Refrigerant	R448a
Freezing Cylinder: Soft Serve Compressor (Btu/hr)	19000
Freezing Cylinder: Shake Compressor (Btu/hr)	15000
Cabinet Compressor (Btu/hr)	1300
Cabinet Refrigerant	R-134a
Plumbing Fittings	Units require 1/2" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F. The machine requires 6" (15.2 cm) air space on all sides for the cabinet refrigeration system.
Air Flow	Units require 6" (15.2 cm) air space on all sides.

Frozen Treat: Capacity Specifications

Name	Value
Freezing Cylinder: Shake Capacity (GAL)	2.1
Freezing Cylinder: Shake Capacity (L)	7.95
Freezing Cylinder: Soft Serve Capacity (GAL)	1.33
Freezing Cylinder: Soft Serve Capacity (L)	5.03
