GBSU444-309I2

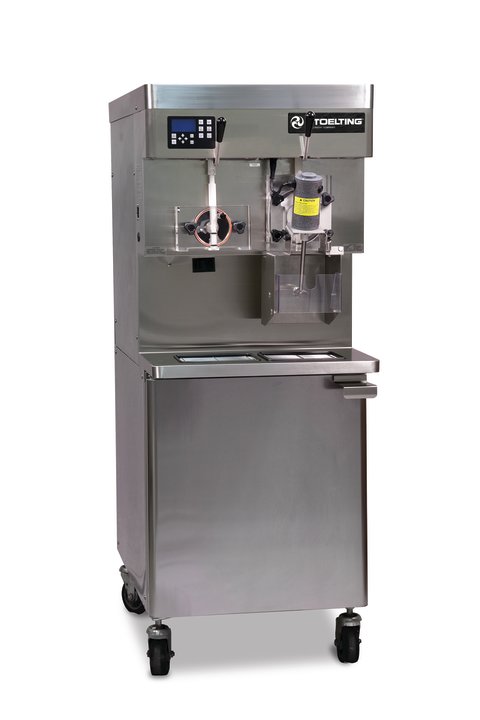

208- to 240-volt 3-phase air-cooled high-capacity combination soft serve and shake machine with refrigerated cabinet and built-in mixer
Deliver consistent, smooth soft serve from the left and thick, creamy shakes from the right with the ease and versatility of a high-capacity, combination soft serve and shake machine. This 208- to 240-volt, 3-phase, air-cooled unit provides greater reliability and whisper-quiet operation, thanks to the Stoelting® high-efficiency evaporator system and Scroll™ compressor. Meanwhile, the refrigerated mix storage cabinet features a slide-out shelf to hold two 8-gallon-mix containers. Plus, the mix pump injects a precise amount of air into the mix, maintaining consistent overrun and maximizing profitability with clean-in-place simplicity. Our proprietary auger design gently folds mix, preventing product breakdown to produce a smoother, creamier product.
- Simplified design for quick assembly after cleaning
- Clear door displays circulating product for merchandising appeal
- Efficient freezing cylinder and auger design delivers a consistent uniform product with small ice crystals and a quick recovery time
- Highly efficient auger design gently folds the entire contents of the freezing cylinder, delivering a thick, smooth, and creamy product
- Allows the operator to dispense smooth soft serve from the left side, and thick creamy shakes on the right side, with the convenience and cost of one unit
- Dispensing and mixing product is accomplished with a single front-mounted handle for fastest speed of service
- Mix containers in the refrigerated storage cabinet safely hold up to 16 gallons of mix, providing enough product during peak times and reducing the frequent refills
- Long-wearing parts offer lower preventative maintenancecosts
- Tamper-proof controls for self-serve applications
- Mix pumps inject the exact amount of air into your mix, maintaining overrun to ensure maximum profitability
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419259830 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 26-3/4 x 40 x 67-1/2 |
| (W) Width (IN) | 26.75 |
| (D) Depth (IN) | 40 |
| (H) Height (IN) | 67.5 |
| (W) Width (CM) | 67.9 |
| (D) Depth (CM) | 101.6 |
| (H) Height (CM) | 171.5 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | Yes |
| Plug Connection | No |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 760 |
| Weight (KG) | 344.7 |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Drive Motor: Soft Serve (hp) | 2 |
| Drive Motor: Shake (hp) | 3/4 |
| Number of Freezing Cylinders | 2 |
| Number of Freezing Cylinder Compressors | 2 |
| Freezing Cylinder Refrigerant | R448a |
| Freezing Cylinder: Soft Serve Compressor (Btu/hr) | 19000 |
| Freezing Cylinder: Shake Compressor (Btu/hr) | 15000 |
| Cabinet Compressor (Btu/hr) | 1300 |
| Cabinet Refrigerant | R-134a |
| Air Flow | Units require 6" (15.2 cm) air space on all sides. |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Freezing Cylinder: Shake Capacity (GAL) | 2.1 |
| Freezing Cylinder: Shake Capacity (L) | 7.95 |
| Freezing Cylinder: Soft Serve Capacity (GAL) | 1.33 |
| Freezing Cylinder: Soft Serve Capacity (L) | 5.03 |
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
