SO218-18B

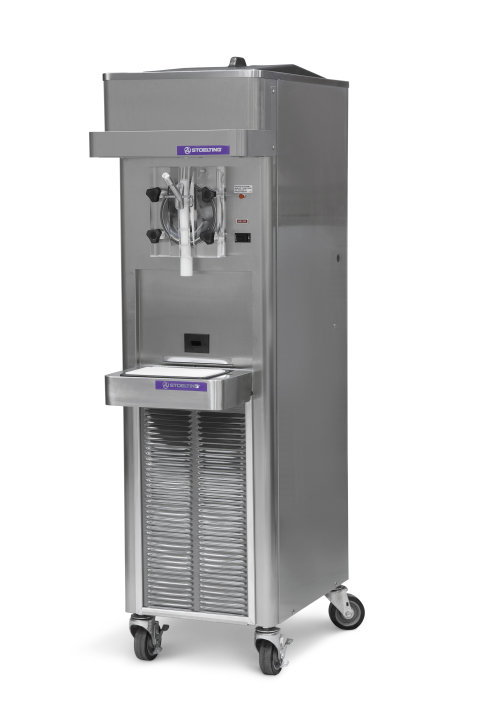

220- to 240-volt 1-phase 60-Hz air-cooled high-capacity frozen beverage dispenser
Meet demand and exceed your customers’ expectations with this 220- to 240-volt, 1-phase, 60-Hz, air-cooled, high-capacity frozen beverage dispenser. A 14,000 BTU/hr compressor, 2-gallon freezing cylinder and 7-gallon mix hopper allow for high-volume dispensing and quick recovery. One selector switch for the auto-off-clean function simplifies operation and cleaning. Meanwhile, the automatic defrost cycle ensures consistent product quality. Plus, the fast-dispense function allows you to fill pitchers quickly, while the controlled dispense function lets you efficiently dispense drinks by the glass.
- 228-240-volt, 1-phase, 50-Hz, air-cooled
- Extra-high capacity with a 14,000 BTU/hr compressor, 2-gallon freezing cylinder and 7-gallon mix hopper for high-volume dispensing and quick recovery
- One selector switch for the auto-off-clean function simplifies operation and cleaning
- Automatic defrost cycle for consistent product
- Fast dispense to fill pitchers quickly. Controlled dispense for drinks by the glass
- Stainless steel auger, heavy-duty speed reducer and ½-hp drive motor ensure robust, reliable performance
- One-piece, clear polycarbonate door showcases preflavored products
- Front-to-rear airflow is quiet and efficient
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080276908 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 17-1/2 x 26-3/8 x 64-1/2 |
| (W) Width (IN) | 17.5 |
| (D) Depth (IN) | 26.37 |
| (H) Height (IN) | 64.5 |
| Overall Dimensions (CM) | 44.5 x 67 x 163.8 |
| (W) Width (CM) | 44.5 |
| (D) Depth (CM) | 67 |
| (H) Height (CM) | 163.8 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 6-20P |
| Plug Connection | Yes |
| Running Amps | 12.9 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 315 |
| Weight (KG) | 142.9 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Water |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 1/2 |
| Number of Hoppers | 1 |
| Number of Freezing Cylinders | 1 |
| Number of Freezing Cylinder Compressors | 1 |
| Plumbing Fittings | Units require 3/8" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM per barrel. Ideal EWT of 50°-70°F. |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 7 |
| Hopper Capacity (L) | 26.5 |
| Total Hopper Capacity (GAL) | 7 |
| Total Hopper Capacity (L) | 26.5 |
| Freezing Cylinder Capacity (GAL) | 2 |
| Freezing Cylinder Capacity (L) | 7.57 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 0 |
| Case Height | 0 |
| Case Length | 0 |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
