SU412-18I

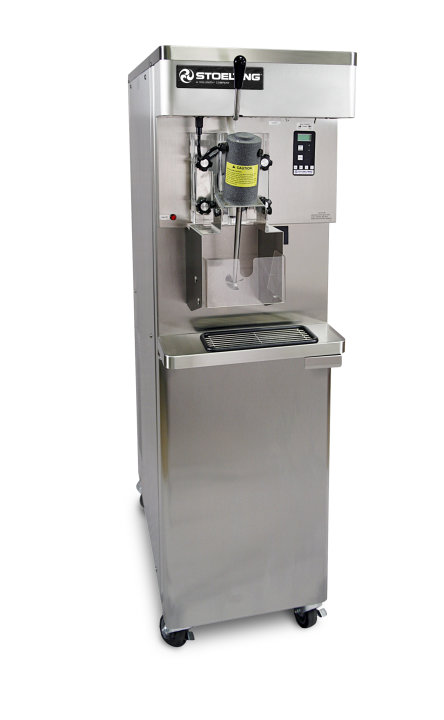

220- to 240-volt 1-phase 50-Hz air-cooled high-capacity frozen beverage dispenser

Name: 220- to 240-volt 1-phase 50-Hz air-cooled high-capacity frozen beverage dispenser
Brand: Stoelting Foodservice

Where to Buy

Request A Quote Where to Buy

Enjoy increased convenience, reliability and consistent production with the 220- to 240-volt, 1-phase, 50-Hz, air-cooled, single-flavor, pressurized shake freezer. It provides greater reliability and whisper-quiet operation, thanks to the high-efficiency evaporator and Scroll™ compressor. Our proprietary auger design gently folds mix while preventing product breakdown. Meanwhile, the refrigerated mix storage cabinet holds the 8-gallon-mix container, slide-out mix shelf and noncontact mix-pump system ensuring consistent control of all mix varieties.

220- to 240-volt, 1-phase, 50-Hz, air-cooled
Mix pump injects precise amount of air into mix, maintaining consistent overrun and ensuring maximum profitability
Reduces labor with clean-in-place simplicity
Enjoy maximum reliability and quieter operation with high-efficiency evaporator and Scroll™ compressor
Refrigerated mix storage cabinet holds the 8-gallon-mix container, slide-out mix shelf and noncontact mix-pump system
Proprietary auger design gently folds mix while preventing product breakdown for a smoother, creamier product
Splash shield improves safety and controls spray for fast and easy cleanup
Improves speed of service with a single, front-mounted handle to dispense and mix product quickly and efficiently

Product Specifications

Model Information

Name	Value
UPC	671080154633

Unit Dimensions

Name	Value
Overall Dimensions (IN)	19 x 38-5/8 x 67-1/4
(W) Width (IN)	19
(D) Depth (IN)	38.62
(H) Height (IN)	67.25
Overall Dimensions (CM)	48.3 x 98.1 x 170.8
(W) Width (CM)	48.3
(D) Depth (CM)	98.1
(H) Height (CM)	170.8

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	Yes
Hz	60
Maximum Overcurrent Protection Device (Per Barrel)	30
Minimum Circuit Ampacity (Per Barrel)	18
Phase	1
Plug Connection	No
Voltage	208-240

Volume

Name	Value
Cabinet Capacity (GAL)	8
Cabinet Capacity (L)	30.3

Weight

Name	Value
Weight (LB)	450
Weight (KG)	204.1

Construction

Name	Value
Refrigerant	R448A

Frozen Treat: General Specifications

Name	Value
Cooling	Water
Compressor (Btu/hr)	11000
Number of Drive Motors	1
Drive Motor (hp)	3/4
Number of Freezing Cylinders	1
Number of Freezing Cylinder Compressors	1
Plumbing Fittings	Units require 1/2" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F
