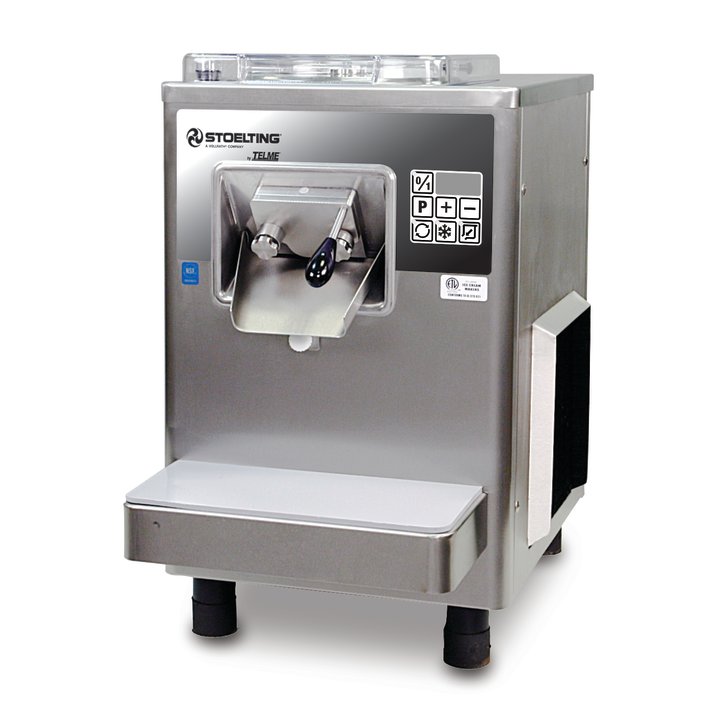

Counter-top vertical batch freezer

GAVB9-302

Discontinued

Counter-top vertical batch freezer

Vertical Batch Freezer, Counter-top Model, 8.5-liter hourly production (on average), provides high capacity and energy efficiency. Large diameter freezing cylinder facilitates extremely fast freezing time, resulting in very small ice crystal formation. Thorough mixing of variegates and particulates unachievable in horizontal barrels. Time controlled freezing cycle achieves smooth texture and product consistency.

  • Vertically oriented freezing cylinder provides high capacity, and maximum energy efficiency.
  • Large diameter freezing cylinder facilitates extremely fast freezing times, resulting in very small ice crystal formation.
  • Easy cleaning and simple assembly of beater parts. Low cost, long wearing, NSF approved plastic beater blades minimize frequent and costly blade replacement.
  • Heavy-duty stainless steel beater shaft built to withstand years of use.
  • Clear acrylic freezing cylinder cover allows monitoring of product while freezing.

Product Specifications

Unit Dimensions
Name Value
(W) Width (IN) 16
Electrical
Name Value
Frequency (Hz) 60
Hardwired Connection No
Hz 60
Phase 1
Plug NEMA 5-20P
Plug Connection Yes
Running Amps 12.3
Voltage 115
Construction
Name Value
Refrigerant R448A
Product Function Gelato and Premium Ice Cream Countertop Machine
Frozen Treat: General Specifications
Name Value
Cooling Air
Compressor (Btu/hr) 1527
Number of Drive Motors 1
Drive Motor (hp) 1-1/3
Number of Freezing Cylinders 1
Number of Freezing Cylinder Compressors 1
Air Flow Units require 4" (10.0 cm) air space at the back
Frozen Treat: Capacity Specifications
Name Value
Freezing Cylinder Capacity (GAL) 0.5
Freezing Cylinder Capacity (L) 1.89

Warranty Information

Terms of Sale

Stoelting product CAD drawings

Stoelting product CAD drawings

Click below to view the most up-to-date list of Stoelting products and CAD drawings.

View CAD Files

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
