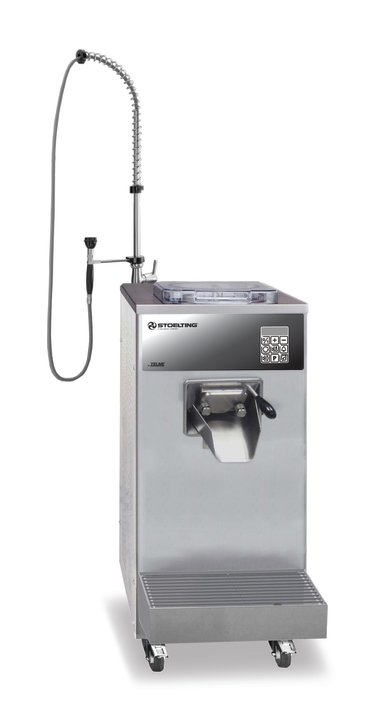

VB50-109A Vertical Batch Freezer

GBVB50-109A

VB50-109A Vertical Batch Freezer

Vertical Batch Freezer, Floor Model, 50.1-liter hourly production (on average). Easy access to freezing cylinder when adding variegates and particulates. Time/temperature controlled freezing achieves same smooth texture and product consistency.

  • Vertically oriented freezing cylinder provides high capacity, and maximum energy efficiency.
  • Large diameter freezing cylinder facilitates extremely fast freezing times, resulting in very small ice crystal formation.
  • Easy cleaning and simple assembly of beater parts.
  • Low cost, long wearing, NSF approved plastic beater blades minimize frequent and costly blade replacement.
  • Heavy-duty stainless steel beater shaft built to withstand years of use.
  • Clear acrylic freezing cylinder cover allows monitoring of product while freezing.
  • Easy access to freezing cylinder when adding variegates and particulates.
  • All buttons and indicators identified by easily understood symbols relative to their function.
  • Time/temperature controlled freezing achieves same smooth texture and product consistency across full and partial batches, a feature not possible with consistency controlled freezers.
  • Swing gate style, stainless steel extraction door design provides rapid extraction of product.
  • Rinse faucet (mounted)

Product Specifications

Model Information
Name Value
UPC 671080879772
Unit Dimensions
Name Value
Overall Dimensions (IN) 19-1/4 x 44-1/8 x 27-1/2
(W) Width (IN) 19.25
(D) Depth (IN) 44.12
(H) Height (IN) 27.5
Overall Dimensions (CM) 48.9 x 112.1 x 69.9
(W) Width (CM) 48.9
(D) Depth (CM) 112.1
(H) Height (CM) 69.9
Electrical
Name Value
Frequency (Hz) 60
Hz 60
Phase 3
Voltage 208-240
Frozen Treat: General Specifications
Name Value
Cooling Water
Number of Drive Motors 1
Drive Motor (hp) 2.7
