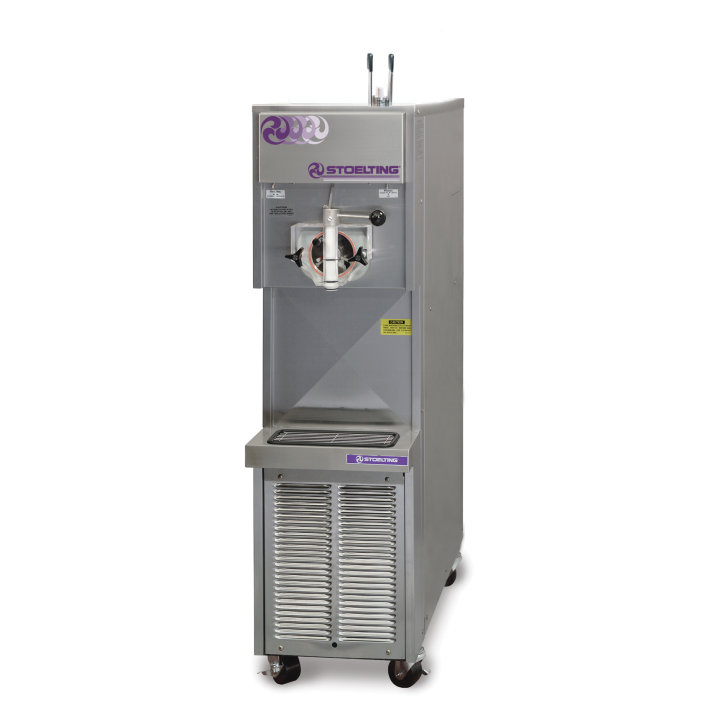

Pressurized Single Flavor Floor Model

Single Flavor, pressure, soft serve ice cream machine, floor model with built-in mix pump. High production capacity, ideally suited for high volume operations. Its high efficiency stainless steel freezing cylinder results in fast freezing, quick recovery, and optimum energy efficiency.

High production capacity with a 14,000 Btu/hr compressor and 2 hp drive motor; dispenses up to 425 five-ounce cones per hour.
Superior product quality.
Long wearing, self-sharpening auger flights gently fold product.
Ideally suited for high volume operations, such as fast food locations, drive-ins, theme parks, institutions, and recreational facilities.
Model 217 built-in mix pump or 217R remote pump ensures firm, delicious, and profitable soft serve product with consistent overrun even under the most demanding conditions.
Excellent warranty: Five years on major components; One year on labor & non-wear parts.

Product Specifications

Model Information

Name	Value
UPC	671080043753

Unit Dimensions

Name	Value
Overall Dimensions (IN)	15 x 39-1/4 x 55-3/4
(W) Width (IN)	15
(D) Depth (IN)	39.25
(H) Height (IN)	55.75
Overall Dimensions (CM)	38.1 x 99.7 x 141.6
(W) Width (CM)	38.1
(D) Depth (CM)	99.7
(H) Height (CM)	141.6

Electrical

Name	Value
Frequency (Hz)	60
Hz	60
Phase	1
Voltage	208-240

Weight

Name	Value
Weight (LB)	415
Weight (KG)	188.2

Frozen Treat: General Specifications

Name	Value
Cooling	Water
Number of Drive Motors	1
Drive Motor (hp)	2
Number of Freezing Cylinder Compressors	1
Freezing Cylinder Compressor (Btu/hr)	14000
Freezing Cylinder Refrigerant	R-404A
Plumbing Fittings	Units require 3/8" N.P.T. water and drain fittings
