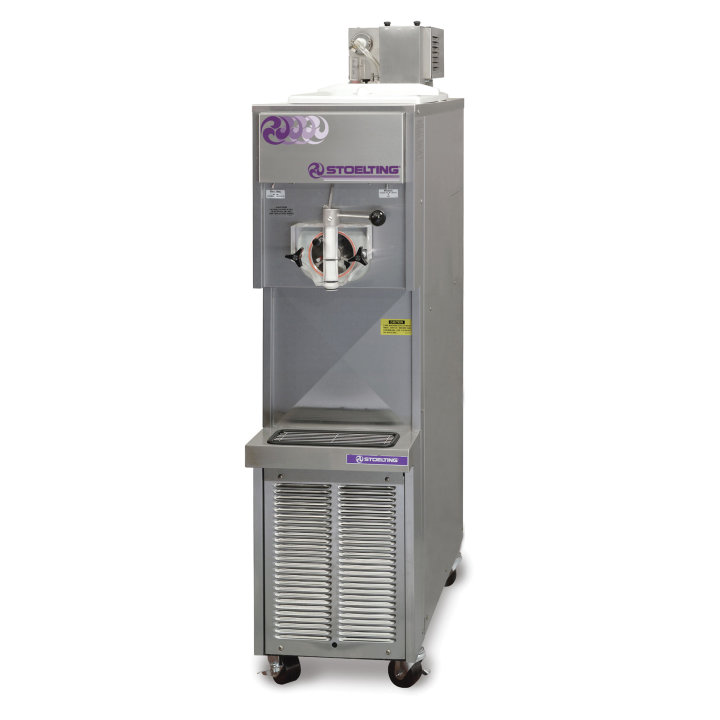

Pressurized Single Flavor Floor Model
Pressurized Single Flavor Floor Model

217-38G

Discontinued

Pressurized Single Flavor Floor Model

Single Flavor, pressure, soft serve ice cream machine, floor model with built-in mix pump. High production capacity, ideally suited for high volume operations. Its high efficiency stainless steel freezing cylinder results in fast freezing, quick recovery, and optimum energy efficiency.

  • High production capacity with a 14,000 Btu/hr compressor and 2 hp drive motor; dispenses up to 425 five-ounce cones per hour.
  • Superior product quality.
  • Long wearing, self-sharpening auger flights gently fold product.
  • Ideally suited for high volume operations, such as fast food locations, drive-ins, theme parks, institutions, and recreational facilities.
  • Model 217 built-in mix pump or 217R remote pump ensures firm, delicious, and profitable soft serve product with consistent overrun even under the most demanding conditions.
  • Excellent warranty: Five years on major components; One year on labor & non-wear parts.

Product Specifications

Model Information
Name Value
UPC 671080142531
Unit Dimensions
Name Value
Overall Dimensions (IN) 15 x 39-1/4 x 63-3/8
(W) Width (IN) 15
(D) Depth (IN) 39.25
(H) Height (IN) 63.37
Overall Dimensions (CM) 38.1 x 99.7 x 161
(W) Width (CM) 38.1
(D) Depth (CM) 99.7
(H) Height (CM) 161
Electrical
Name Value
Frequency (Hz) 60
Hardwired Connection Yes
Hz 60
Maximum Overcurrent Protection Device (Per Barrel) 35
Minimum Circuit Ampacity (Per Barrel) 27
Phase 1
Plug Connection No
Voltage 208-240
Weight
Name Value
Weight (LB) 415
Weight (KG) 188.2
Construction
Name Value
Refrigerant R448A
Frozen Treat: General Specifications
Name Value
Cooling Air
Compressor (Btu/hr) 14000
Number of Drive Motors 1
Drive Motor (hp) 2
Number of Hoppers 1
Number of Freezing Cylinders 1
Plumbing Fittings Units require 3/8" N.P.T. water and drain fittings
Frozen Treat: Capacity Specifications
Name Value
Hopper Capacity (GAL) 6.5
Hopper Capacity (L) 24.61
Total Hopper Capacity (GAL) 6.5
Total Hopper Capacity (L) 24.61
Freezing Cylinder Capacity (GAL) 1.33
Freezing Cylinder Capacity (L) 5.03
Case Lot Measurement
Name Value
Case Width 53
Case Height 67
Case Length 26

Warranty Information

Terms of Sale

Product Downloads

Resource preview Challenger, Pressurized Single Flavor Floor Model - Operator's Manual (English)
Resource preview 238R, 217R, 217 Soft Serve Pressure-Fed Floor Machines - Specification Sheet (English)

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
