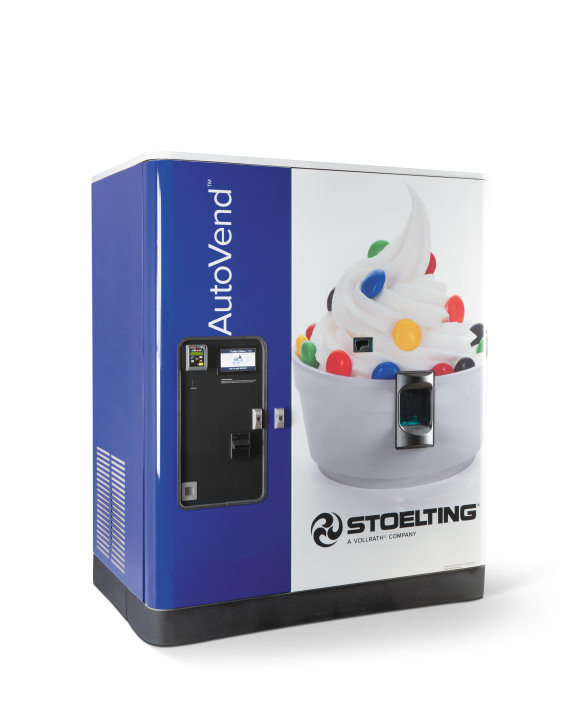

AUTOVEND-38I3
208 - 240 volt air cooled self-serve soft serve and frozen yogurt machine
The award-winning AutoVend is a quick-serve frozen yogurt or soft serve machine that dispenses a personalized frozen treat within 30 seconds. This automated machine allows users to choose their size, flavor, and toppings from an easy to navigate digital screen. The AutoVend can be operated 24/7 and is perfect for any location - from schools to convenience stores and more. This machine is designed to generate revenue with a significantly lower investment in retail floor space, operations and staffing.
- Three customizable portion sizes
- Two flavors, which can be combined into a twist.
- Up to four toppings
- Frozen treat is dispensed with a spoon
- Payment options include cash, credit, debit, or Near-field Communication (e.g. Apple Pay®).
- Maintenance and cash box doors have different keys for security.
- IntelliTec 3™ Control offers programmable and configurable operation through a touchscreen graphical user interface
- Includes factory-approved start-up and training
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080521770 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 66.375 x 41.88 x 87.25 |
| (W) Width (IN) | 66.37 |
| (D) Depth (IN) | 41.88 |
| (H) Height (IN) | 87.25 |
| Overall Dimensions (CM) | 168.6 x 106.4 x 221.6 |
| (W) Width (CM) | 168.6 |
| (D) Depth (CM) | 106.4 |
| (H) Height (CM) | 221.6 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA L6-30P |
| Running Amps | 17 |
| Voltage | 208-240 |
Volume
| Name | Value |
|---|---|
| Topping Bin Capacity (L) | 8.5 |
| Topping Bin Capacity (QT) | 9 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 1300 |
| Weight (KG) | 589.6 |
Construction
| Name | Value |
|---|---|
| Number of Topping Bins | 4 |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 2 |
| Drive Motor (hp) | 0.75 |
| Number of Hoppers | 2 |
| Hopper Refrigerant | R-404A |
| Number of Freezing Cylinders | 2 |
| Freezing Cylinder Compressor (Btu/hr) | 12000 |
| Air Flow | Units require 6" (15.2 cm) air space on the left and right sides |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 3 |
| Hopper Capacity (L) | 11.35 |
| Total Hopper Capacity (GAL) | 6 |
| Total Hopper Capacity (L) | 22.7 |
| Freezing Cylinder Capacity (GAL) | 0.85 |
| Freezing Cylinder Capacity (L) | 3.22 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 77 |
| Case Height | 92 |
| Case Length | 50 |
