F144-38I2
208- to 240-volt single-phase air-cooled gravity-fed twin-twist soft serve floor machine

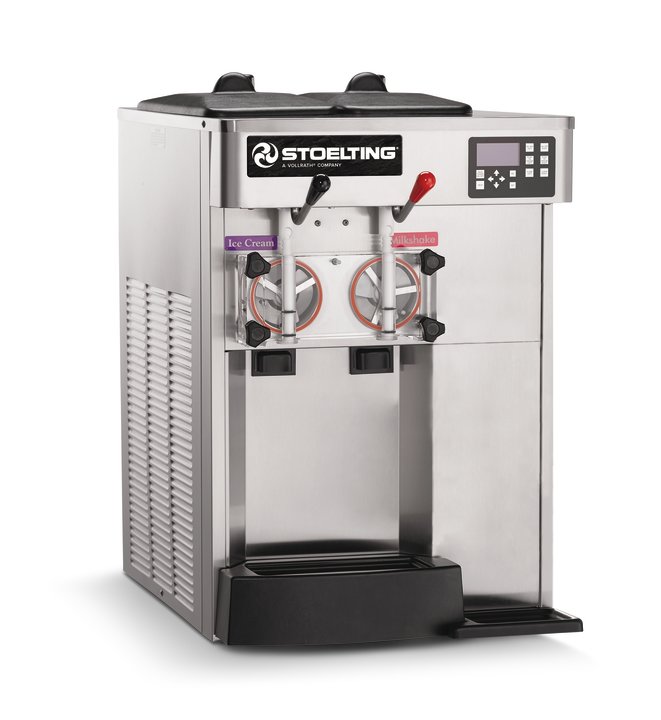

Shake up your frozen treat offerings with the versatile and convenient countertop soft serve and shake freezer by Stoelting. Perfect for restaurants, ice cream parlors, cafeterias and schools, this 208- to 240-volt, air-cooled powerhouse dispenses flawless soft serve from the left and thick, creamy shakes from the right — all in one machine. You’ll have no trouble serving up two different treats during times of peak demand, thanks to its 12,000-BTU/hr compressor and two ¾-hp drive motors. Intellitec2® control provides clear communication through a multiline graphics LCD using full-text instructions, and ultradurable construction promises long-term peace of mind. An optional spinner is available for shakes.
- 208- to 240-volt 1-phase air-cooled model with two 5-gallon hoppers that dispense two single flavors or combine them in a twist
- Precision-controlled refrigeration system designed for quality product consistency from the first order to the last
- Intellitec2® control communicates with the operator through a multiline graphics LCD display using full-text instructions
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Compact design with a small footprint saves valuable floor space
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Clear door provides excellent product visibility and merchandising appeal
- Clear door provides excellent product visibility and merchandising appeal
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080396828 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 22 x 28-1/2 x 34-3/4 |
| (W) Width (IN) | 22 |
| (D) Depth (IN) | 28.5 |
| (H) Height (IN) | 34.75 |
| (WL) Width between legs | 15.5 |
| (DL) Depth between legs | 16.25 |
| Overall Dimensions (CM) | 55.9 x 72.4 x 88.3 |
| (W) Width (CM) | 55.9 |
| (D) Depth (CM) | 72.4 |
| (H) Height (CM) | 88.3 |
| (WL) Width between legs (CM) | 39.4 |
| (DL) Depth between legs (CM) | 41.3 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 6-20P |
| Plug Connection | Yes |
| Running Amps | 12 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 385 |
| Weight (KG) | 174.6 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 2 |
| Drive Motor (hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Air Flow | Units require 3" (7.6 cm) air space on both sides |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 3 |
| Hopper Capacity (L) | 11.36 |
| Total Hopper Capacity (GAL) | 6 |
| Total Hopper Capacity (L) | 22.71 |
| Freezing Cylinder Capacity (GAL) | 0.85 |
| Freezing Cylinder Capacity (L) | 3.22 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 41 |
| Case Height | 44 |
| Case Length | 28 |
