F144-18I2

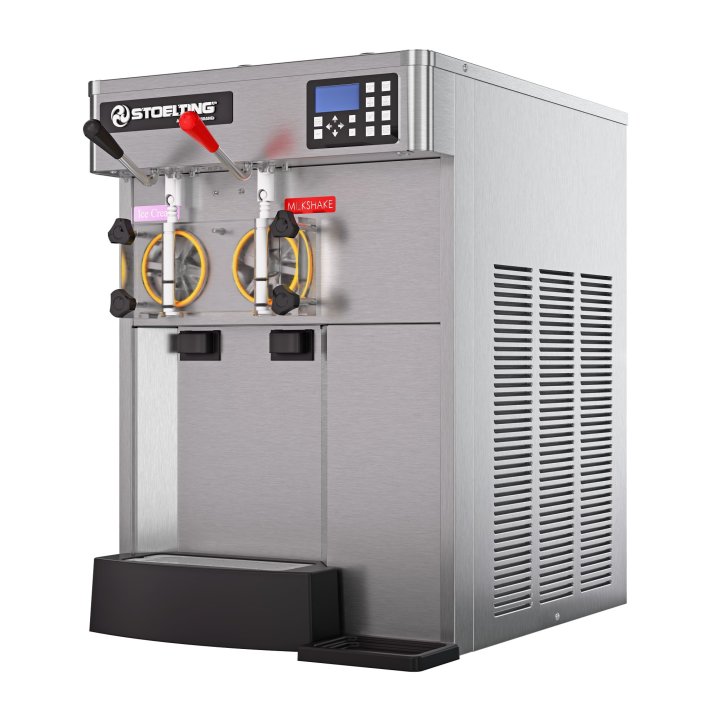

208- to 240-volt single-phase water-cooled gravity-fed soft serve & shake countertop machine
Shake up your frozen treat offerings with the versatile and convenient countertop soft serve and shake freezer by Stoelting. Perfect for restaurants, ice cream parlors, cafeterias and schools, this 208- to 240-volt, water-cooled powerhouse dispenses flawless soft serve from the left and thick, creamy shakes from the right — all in one machine. You’ll have no trouble serving up two different treats during times of peak demand, thanks to its 12,000-BTU/hr compressor and two ¾-hp drive motors. Intellitec2® control provides clear communication through a multiline graphics LCD using full-text instructions, and ultradurable construction promises long-term peace of mind. An optional spinner is available for shakes.
- Allows the operators to dispense outstanding soft serve from the left side, and thick, creamy shakes from the right side, with the convenience and cost of one unit
- HIgh-production capacity with 12,000-BTU/hr compress and two ¾-hp drive motors
- Intellitec2® control communicates with the operator through a multiline graphics LCD display using full-text instructions
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Compact design with a small footprint saves valuable floor space
- ADA-compliant handles are flat and 48 inches from the ground
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Self-closing spigot eliminates waste and ensures precise portion control
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080338644 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 22 x 28-1/2 x 34-3/4 |
| (W) Width (IN) | 22 |
| (D) Depth (IN) | 28.5 |
| (H) Height (IN) | 34.75 |
| (WL) Width between legs | 15.5 |
| (DL) Depth between legs | 16.25 |
| Overall Dimensions (CM) | 55.9 x 72.4 x 88.3 |
| (W) Width (CM) | 55.9 |
| (D) Depth (CM) | 72.4 |
| (H) Height (CM) | 88.3 |
| (WL) Width between legs (CM) | 39.4 |
| (DL) Depth between legs (CM) | 41.3 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 6-20P |
| Plug Connection | Yes |
| Running Amps | 11 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 385 |
| Weight (KG) | 174.6 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Water |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 2 |
| Drive Motor (hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Plumbing Fittings | Units require 3/8" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F. |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 3 |
| Hopper Capacity (L) | 11.36 |
| Total Hopper Capacity (GAL) | 6 |
| Total Hopper Capacity (L) | 22.71 |
| Freezing Cylinder Capacity (GAL) | 0.85 |
| Freezing Cylinder Capacity (L) | 3.22 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 0 |
| Case Height | 0 |
| Case Length | 0 |
