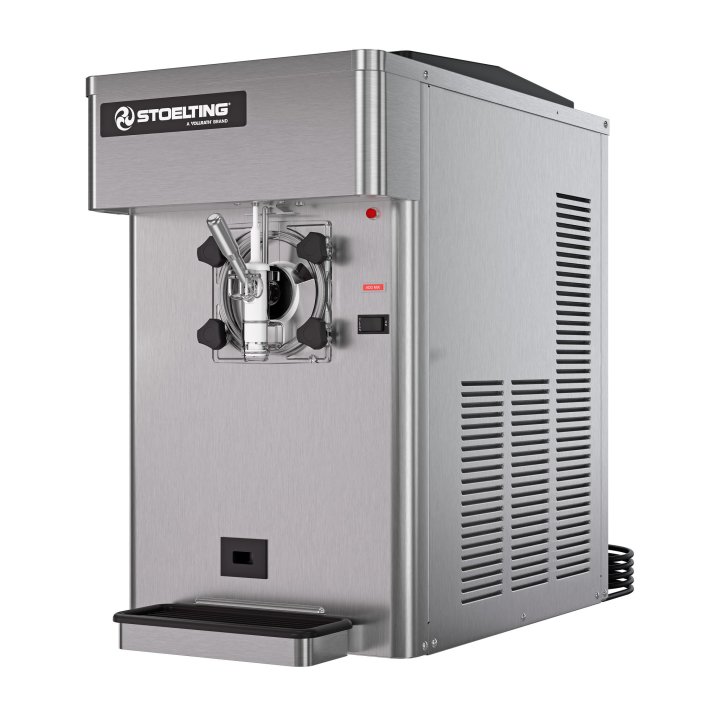

2.13 gal Counter-top Shake or Frozen Beverage Freezer

Single Flavor, Gravity Shake or Frozen Beverage Freezer, Compact Counter-top Model, offers the convenience to serve frozen beverages, shakes, smoothies or frozen cocktails. High capacity refrigeration system designed for high temperature.

Compact, space-saver unit, offers the convenience to serve frozen beverages, shakes, smoothies or frozen cocktails.
One selector switch, auto-off-clean, for simplified operation and cleaning.
High capacity refrigeration system designed for high temperatures; produces volumes of shakes or frozen beverages.
Slush defrost cycle for consistent product.
Low mix warning light with electronic controls are auto-fill ready.
Stainless steel auger, heavy-duty speed reducer, 3/4 hp drive motor sets the standard for long life dependability.
Air filter located behind left side is easily cleaned to maintain continuous high performance.
Electric, CO2, or air operated autofill kits are available.
On demand defrost insures a smooth drink with consistent quality.
Optional bottle rack with plastic bottles available.

Product Specifications

Model Information

Name	Value
UPC	671080480831

Unit Dimensions

Name	Value
Overall Dimensions (IN)	17-1/4 x 30-1/4 x 33
(W) Width (IN)	17.25
(D) Depth (IN)	30.25
(H) Height (IN)	33
(WL) Width between legs	13.5
(DL) Depth between legs	21.25
Overall Dimensions (CM)	43.8 x 76.8 x 83.8
(W) Width (CM)	43.8
(D) Depth (CM)	76.8
(H) Height (CM)	83.8
(WL) Width between legs (CM)	34.3
(DL) Depth between legs (CM)	54
Size	2.13

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	No
Hz	60
Phase	1
Plug	NEMA 6-15P
Plug Connection	Yes
Running Amps	10
Voltage	208-240

Weight

Name	Value
Weight (LB)	288
Weight (KG)	130.6

Construction

Name	Value
Refrigerant	R448A

Frozen Treat: General Specifications

Name	Value
Cooling	Air
Compressor (Btu/hr)	8000
Number of Drive Motors	1
Drive Motor (hp)	3/4
Number of Hoppers	1
Number of Freezing Cylinders	1
Air Flow	Units require 6" (15.24 cm) air space on both sides

Frozen Treat: Capacity Specifications

Name	Value
Hopper Capacity (GAL)	5.38
Hopper Capacity (L)	20.37
Total Hopper Capacity (GAL)	5.38
Total Hopper Capacity (L)	20.37
Freezing Cylinder Capacity (GAL)	2.12
Freezing Cylinder Capacity (L)	8.03

Case Lot Measurement

Name	Value
Case Width	37
Case Height	41
Case Length	22

Product Accessories

Name	Item #
115-volt 1-phase dial-control hand-operated mix-in blender	521005
115-volt 1-phase foot-operated mix-in blender	521019
200- to 240-volt mix in blender with foot switch	521030
200- to 240-volt mix in blender with mounted speed control	521035
Steel Frame Floor Stand 22 ¼” x 18 ¾” x 22 1/4”	2202408
Steel Frame Floor Stand with Casters 22” x 31” x 24”	4177350
Steel Frame Floor Stand with Casters 22” x 26” x 24”	4183513
