F112-18-AF

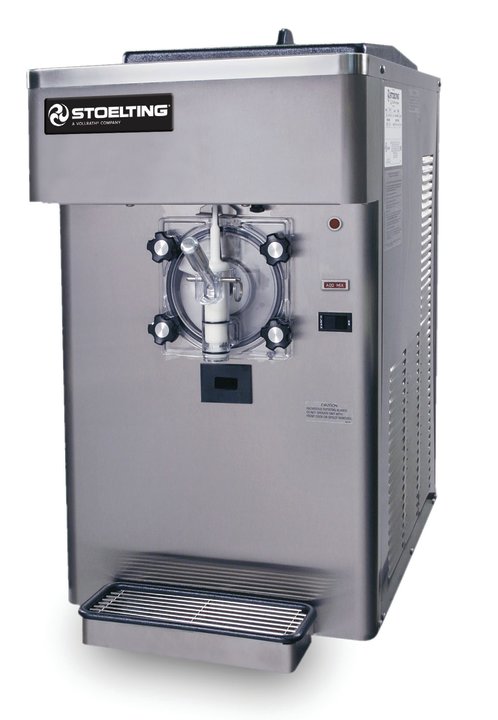

2.13-gallon 220- to 240-volt water-cooled gravity-fed single-flavor countertop shake or slush freezer

Name: 2.13-gallon 220- to 240-volt water-cooled gravity-fed single-flavor countertop shake or slush freezer
Brand: Stoelting Foodservice

Where to Buy

Request A Quote Where to Buy

Serve frozen beverages, shakes, smoothies and frozen cocktails with this single-flavor, jack-of-all-trades frozen-treat machine. Boasting a 8,600-BTU/hr compressor and a 2.13-gallon freezing cylinder volume, the 220- to 240-volt, water-cooled Stoelting single-flavor countertop shake or slush freezer offers the convenience of product versatility, without sacrificing quality or ease of use. Operation could not be easier with its single auto-off-clean selector switch. And thanks to its high-capacity refrigeration system, this compact powerhouse delivers volumes of shakes or frozen beverages, even in high temperatures.

220- to 240-volt, water-cooled model offers the versatility of frozen beverages, shakes, smoothies and frozen cocktails
One selector switch, auto-off-clean, for simplified operation and cleaning
8,600-BTU/hr compressor produces more finished product with a smaller footprint
Stainless steel auger, heavy-duty speed reducer, ½-hp drive motor sets the standard for long-life dependability
ECM prevents over agitation during slow or nondraw periods
Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
Clear door provides excellent product visibility and merchandising appeal
Clear door provides excellent product visibility and merchandising appeal

Product Specifications

Model Information

Name	Value
UPC	671080276298

Unit Dimensions

Name	Value
Overall Dimensions (IN)	17-1/4 x 30-1/4 x 33
(W) Width (IN)	17.25
(D) Depth (IN)	30.25
(H) Height (IN)	33
(WL) Width between legs	13.5
(DL) Depth between legs	21.25
Overall Dimensions (CM)	43.8 x 76.8 x 83.8
(W) Width (CM)	43.8
(D) Depth (CM)	76.8
(H) Height (CM)	83.8
(WL) Width between legs (CM)	34.3
(DL) Depth between legs (CM)	54
Size	2.13

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	No
Hz	60
Phase	1
Plug	NEMA 6-15P
Plug Connection	Yes
Running Amps	9
Voltage	208-240

Weight

Name	Value
Weight (LB)	288
Weight (KG)	130.6

Construction

Name	Value
Refrigerant	R448A

Frozen Treat: General Specifications

Name	Value
Cooling	Water
Compressor (Btu/hr)	8000
Number of Drive Motors	1
Drive Motor (hp)	3/4
Number of Hoppers	1
Number of Freezing Cylinders	1
Plumbing Fittings	Units require 3/8" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM per barrel. Ideal EWT of 50°-70°F.

Frozen Treat: Capacity Specifications

Name	Value
Hopper Capacity (GAL)	5.38
Hopper Capacity (L)	20.37
Total Hopper Capacity (GAL)	5.38
Total Hopper Capacity (L)	20.37
Freezing Cylinder Capacity (GAL)	2.12
Freezing Cylinder Capacity (L)	8.03

Case Lot Measurement

Name	Value
Case Width	37
Case Height	43
Case Length	23

Product Accessories

Name	Item #
115-volt 1-phase dial-control hand-operated mix-in blender	521005
115-volt 1-phase foot-operated mix-in blender	521019
200- to 240-volt mix in blender with foot switch	521030
200- to 240-volt mix in blender with mounted speed control	521035
Steel Frame Floor Stand 22 ¼” x 18 ¾” x 22 1/4”	2202408
Steel Frame Floor Stand with Casters 22” x 31” x 24”	4177350
Steel Frame Floor Stand with Casters 22” x 26” x 24”	4183513
