E257-37A

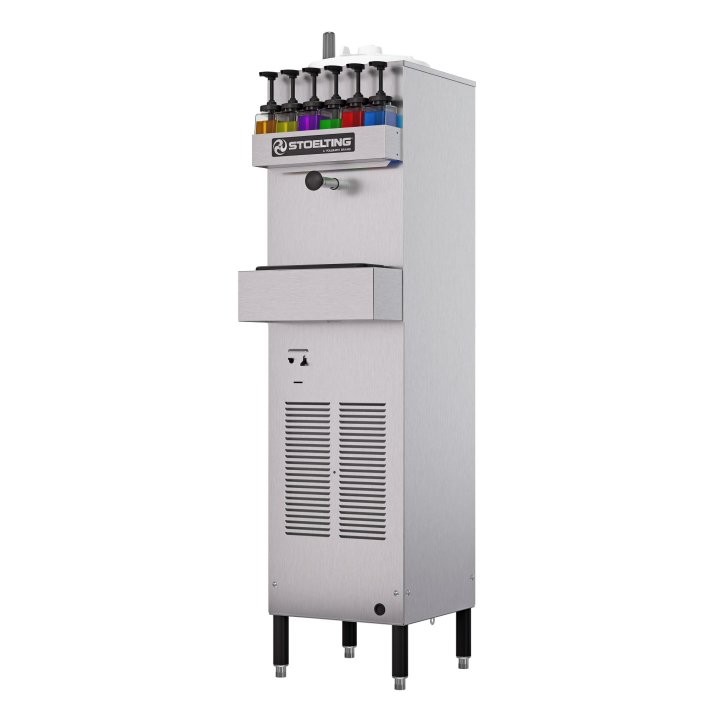

10-gallon-capacity 115-volt air-cooled floor model frozen beverage dispenser
Let customers, students and residents help themselves to delicious frozen treats with the floor model frozen beverage dispenser by Stoelting. Designed to operate with most neutral bases and concentrated flavors, this compact yet high-volume performer delivers a consistent product from first to last pull. Featuring sturdy cup holders and fully automatic controls as standard equipment, this energy-efficient freezer also comes with a simplified design for quick cleaning and assembly. Make it even more convenient by adding optional merchandising graphics, cupholders, a bottle rack and plastic bottles.
- 10-gallon capacity provides high-volume dispensing, while also saving energy
- Compact footprint saves valuable floor space
- Proven design and fully automatic controls provide consistent, servable product
- ConnectI2U™ equipment monitoring includes remote diagnosis, instant email notifications and access to your machine’s performance, sales history and preventative maintenance
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Auto-Fill Kit ready for added convenience
- Self-closing spigot eliminates waste and ensures precise portion control
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080186573 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15 x 15 x 58 |
| (W) Width (IN) | 15 |
| (D) Depth (IN) | 15 |
| (H) Height (IN) | 58 |
| Overall Dimensions (CM) | 38.1 x 38.1 x 147.3 |
| (W) Width (CM) | 38.1 |
| (D) Depth (CM) | 38.1 |
| (H) Height (CM) | 147.3 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-15P |
| Plug Connection | Yes |
| Running Amps | 9 |
| Voltage | 115 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 140 |
| Weight (KG) | 63.5 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 2600 |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 1/12 |
| Number of Hoppers | 1 |
| Number of Freezing Cylinders | 1 |
| Freezing Cylinder Refrigerant | R448A |
| Air Flow | Units require 6" (15.2 cm) air space on both sides and back |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 10 |
| Hopper Capacity (L) | 37.85 |
| Total Hopper Capacity (GAL) | 10 |
| Total Hopper Capacity (L) | 37.85 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 23 |
| Case Height | 66 |
| Case Length | 18 |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
Customer Questions
Be the first to ask a question
