E157-37A

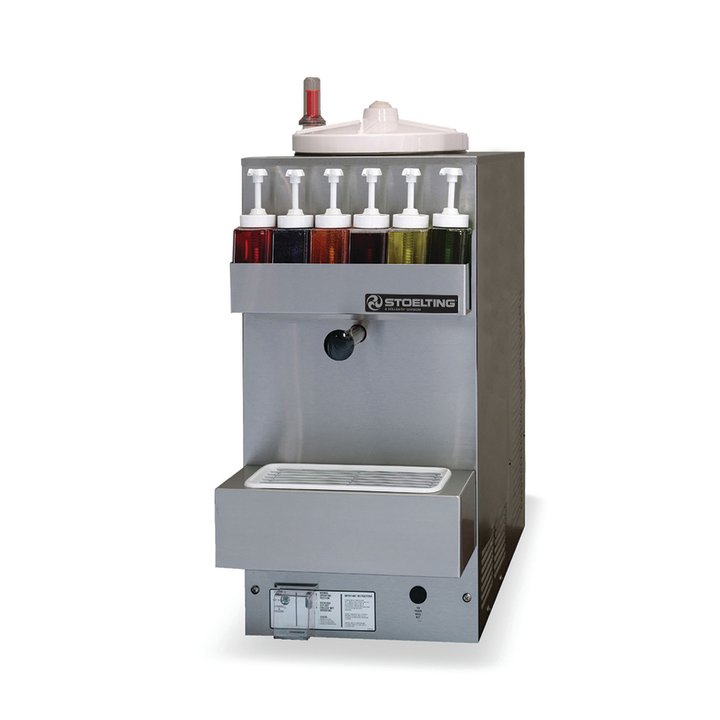

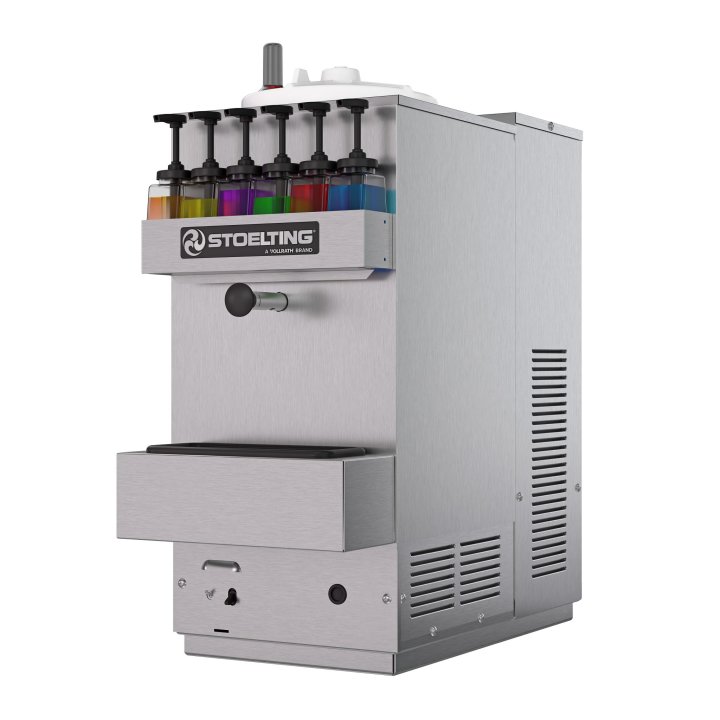

10-gallon-capacity 115-volt air-cooled countertop frozen beverage dispenser
Let customers, students and residents help themselves to delicious frozen treats with the countertop frozen beverage dispenser by Stoelting. Designed to operate with most neutral bases and concentrated flavors, this compact yet high-volume performer delivers a consistent product from first to last pull. Featuring sturdy cup holders and fully automatic controls as standard equipment, this energy-efficient freezer also comes with a simplified design for quick cleaning and assembly. Make it even more convenient by adding optional merchandising graphics as well as a bottle rack and plastic bottles.
- 10-gallon capacity provides high-volume dispensing, while also saving energy
- Compact footprint saves valuable counter space
- Proven design and fully automatic controls provide consistent, servable product
- Energy Conservation Mode (ECM) protects products from over agitation during slow or nondraw periods
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Optional floor stand frees up counter space and provides additional storage
- Auto-Fill Kit ready for added convenience
- ADA-compliant for self-service locations when paired with optional floor stand
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080186559 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15 x 29-1/2 x 32 |
| (W) Width (IN) | 15 |
| (D) Depth (IN) | 29.5 |
| (H) Height (IN) | 32 |
| Overall Dimensions (CM) | 38.1 x 74.9 x 81.3 |
| (W) Width (CM) | 38.1 |
| (D) Depth (CM) | 74.9 |
| (H) Height (CM) | 81.3 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-15P |
| Plug Connection | Yes |
| Running Amps | 9 |
| Voltage | 115 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 142 |
| Weight (KG) | 64.4 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 2600 |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 1/12 |
| Number of Hoppers | 1 |
| Number of Freezing Cylinders | 1 |
| Freezing Cylinder Refrigerant | R448A |
| Air Flow | Units require 6" (15.2 cm) air space on both sides and back |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 10 |
| Hopper Capacity (L) | 37.85 |
| Total Hopper Capacity (GAL) | 10 |
| Total Hopper Capacity (L) | 37.85 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 28 |
| Case Height | 41 |
| Case Length | 36 |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
