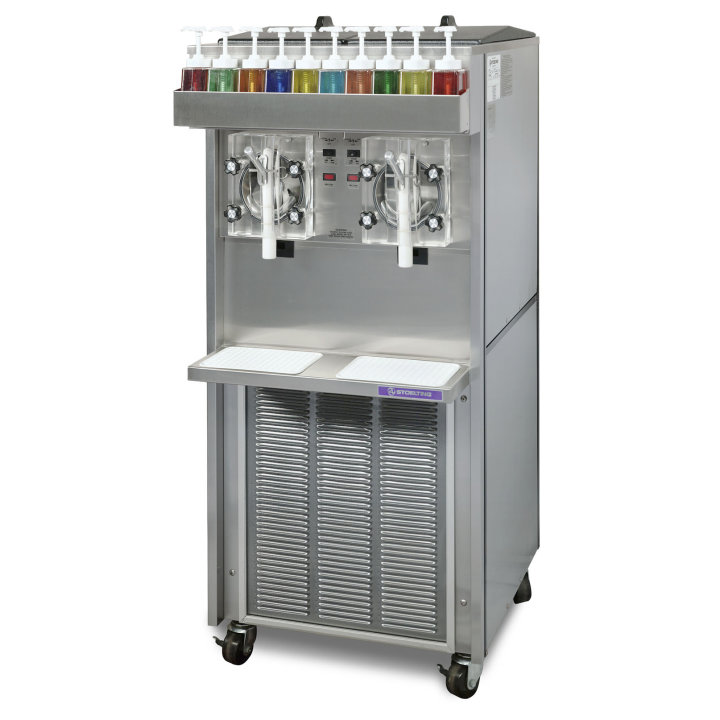

208- to 240-volt 12-amp 1-phase 60-Hz air-cooled high-capacity frozen beverage dispenser

Enjoy increased convenience, reliability and consistent production with the 208- to 240-volt, 1-phase, 60-Hz, air-cooled, single-flavor, pressurized shake freezer. It provides greater reliability and whisper-quiet operation, thanks to the high-efficiency evaporator and Scroll™ compressor. Our proprietary auger design gently folds mix, while preventing product breakdown. Meanwhile, the refrigerated mix storage cabinet holds the 8-gallon-mix container, slide-out mix shelf and noncontact mix-pump system ensuring consistent control of all mix varieties.

208- to 240-volt, 1-phase, 60-Hz, air-cooled
Mix pump injects precise amount of air into mix, maintaining consistent overrun and ensuring maximum profitability
Reduces labor with clean-in-place simplicity
Enjoy maximum reliability and quieter operation with high-efficiency evaporator and Scroll™ compressor
Refrigerated mix storage cabinet holds the 8-gallon-mix container, slide-out mix shelf and noncontact mix-pump system
Proprietary auger design gently folds mix while preventing product breakdown for a smoother, creamier product
Splash shield improves safety and controls spray for fast and easy cleanup
Improves speed of service with a single, front-mounted handle to dispense and mix product quickly and efficiently

Product Specifications

Model Information

Name	Value
UPC	671080090023

Unit Dimensions

Name	Value
Overall Dimensions (IN)	26 x 33-1/2 x 60-1/2
(W) Width (IN)	26
(D) Depth (IN)	33.5
(H) Height (IN)	60.5
Overall Dimensions (CM)	66 x 85.1 x 153.7
(W) Width (CM)	66
(D) Depth (CM)	85.1
(H) Height (CM)	153.7

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	No
Hz	60
Phase	1
Plug	NEMA 6-20P
Plug Connection	Yes
Running Amps	13.9
Voltage	208-240

Volume

Name	Value
Output Capacity per Hour per Freezing Cylinder (GAL)	26

Weight

Name	Value
Weight (LB)	586
Weight (KG)	265.8

Construction

Name	Value
Compressor Capacity (Btu/hr) per Compressor	14000
Number of Compressors	2
Refrigerant	R448A

Frozen Treat: General Specifications

Name	Value
Cooling	Air
Number of Drive Motors	2
Drive Motor (hp)	1/2
Number of Hoppers	2
Number of Freezing Cylinders	2
Freezing Cylinder Refrigerant	R448A
Air Flow	Units require 3" (7.6 cm) air space at the front and back.

Frozen Treat: Capacity Specifications

Name	Value
Hopper Capacity (GAL)	4.5
Hopper Capacity (L)	17.03
Total Hopper Capacity (GAL)	9
Total Hopper Capacity (L)	34.07
Freezing Cylinder Capacity (GAL)	2
Freezing Cylinder Capacity (L)	7.57
