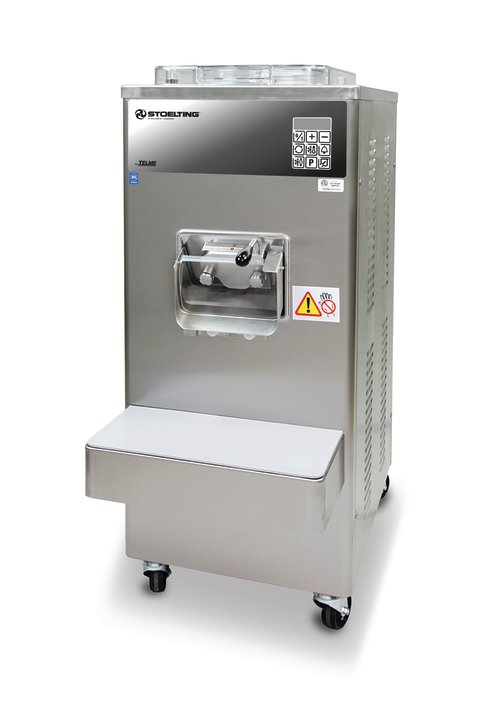

VB90-109A
208- to 240-volt 3-phase water-cooled 5-12 quart vertical batch freezer
Enjoy a perfect combination of high-capacity performance and maximum energy efficiency with this vertical batch freezer. Rugged and reliable, this 208- to 240-volt, 3-phase, water-cooled unit produces approximately 5-12 quarts of product. Simple to operate and easy to maintain, it will ensure perfect, premium ice cream, gelato, custard, sherbet, sorbet or water ices every time.
- 208- to 240-volt, 3-phase, water-cooled
- Two 3.6-hp compressors
- 6.5-hp drive motor
- Vertically oriented freezing cylinder provides high capacity and maximum energy efficiency
- Large diameter freezing cylinder facilitates extremely fast freezing times, minimizing ice crystal formation
- Easy cleaning and effortless assembly of beater parts
- Affordable, heavy-duty plastic beater blades minimize frequent, costly blade replacement
- Heavy-duty stainless steel beater shaft is built to withstand years of use
- Clear, acrylic freezing cylinder cover allows operator to monitor product during freezing process
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080154985 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 20 x 45-1/2 x 27-3/4 |
| (W) Width (IN) | 20 |
| (D) Depth (IN) | 45.5 |
| (H) Height (IN) | 27.75 |
| Overall Dimensions (CM) | 50.8 x 115.6 x 70.5 |
| (W) Width (CM) | 50.8 |
| (D) Depth (CM) | 115.6 |
| (H) Height (CM) | 70.5 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Maximum Overcurrent Protection Device (Per Barrel) | 50 |
| Phase | 3 |
| Plug | Plug not included |
| Plug Connection | Yes |
| Running Amps | 33 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 628 |
| Weight (KG) | 284.9 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
| Product Function | Vertical Batch Freezer |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Water |
| Compressor (Btu/hr) | 9160 |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 6.4 |
| Number of Freezing Cylinders | 1 |
| Number of Freezing Cylinder Compressors | 2 |
| Plumbing Fittings | Units require 3/4" N.P.T. water and drain fittings. |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Freezing Cylinder Capacity (GAL) | 3 |
| Freezing Cylinder Capacity (L) | 11.36 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 34 |
| Case Height | 62 |
| Case Length | 24 |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
