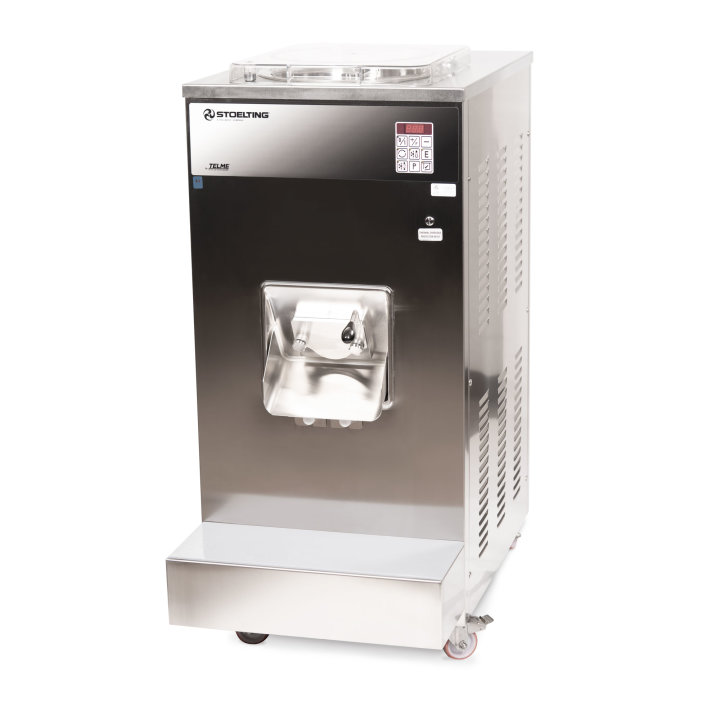

VB120-109A
208- to 240-volt 3-phase water-cooled 6-19 quart vertical batch freezer
Enjoy a perfect combination of high-capacity performance and maximum energy efficiency with this vertical batch freezer. Rugged and reliable, this 208- to 240-volt, 3-phase, water-cooled unit produces approximately 6-19 quarts of product. Simple to operate and easy to maintain, it will ensure perfect, premium ice cream, gelato, custard, sherbet, sorbet or water ices every time.
- 208- to 240-volt, 3-phase, water-cooled
- 1.8-hp compressor, 2.7-hp drive motor
- Vertically oriented freezing cylinder provides high capacity and maximum energy efficiency
- Large diameter freezing cylinder facilitates extremely fast freezing times, minimizing ice crystal formation
- Easy cleaning and effortless assembly of beater parts
- Affordable, heavy-duty plastic beater blades minimize frequent, costly blade replacement
- Heavy-duty stainless steel beater shaft is built to withstand years of use
- Clear, acrylic freezing cylinder cover allows operator to monitor product during freezing process
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080154978 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 21-3/4 x 47-1/4 x 30-3/4 |
| (W) Width (IN) | 21.75 |
| (D) Depth (IN) | 47.25 |
| (H) Height (IN) | 30.75 |
| Overall Dimensions (CM) | 55.2 x 120 x 78.1 |
| (W) Width (CM) | 55.2 |
| (D) Depth (CM) | 120 |
| (H) Height (CM) | 78.1 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Maximum Overcurrent Protection Device (Per Barrel) | 60 |
| Phase | 3 |
| Plug | Plug not included |
| Plug Connection | Yes |
| Running Amps | 48 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 814 |
| Weight (KG) | 369.2 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Water |
| Compressor (Btu/hr) | 12722 |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 9.1 |
| Number of Freezing Cylinders | 1 |
| Number of Freezing Cylinder Compressors | 2 |
| Plumbing Fittings | Units require 3/4" N.P.T. water and drain fittings. |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Freezing Cylinder Capacity (GAL) | 4.75 |
| Freezing Cylinder Capacity (L) | 17.98 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 36 |
| Case Height | 64 |
| Case Length | 26 |
