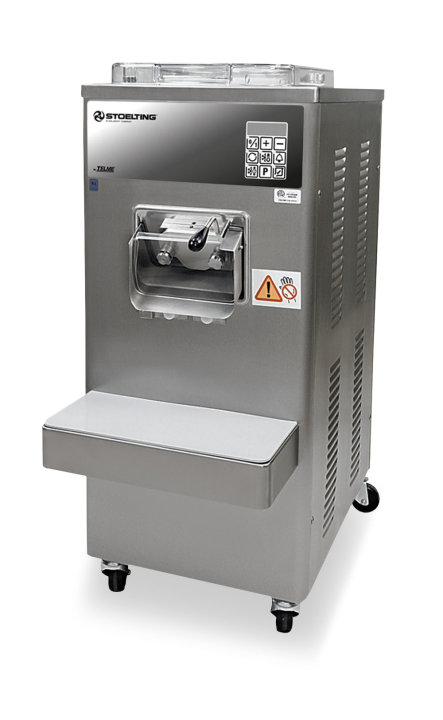

208- to 240-volt 3-phase water-cooled 4-8 quart vertical batch freezer

VB60-109A

208- to 240-volt 3-phase water-cooled 4-8 quart vertical batch freezer

Enjoy a perfect combination of high-capacity performance and maximum energy efficiency with this vertical batch freezer. Rugged and reliable, this 208- to 240-volt, 3-phase, water-cooled unit produces approximately 4-8 quarts of product. Simple to operate and easy to maintain, it will ensure perfect, premium ice cream, gelato, custard, sherbet, sorbet or water ices every time.

  • 115-volt, 1-phase, air-cooled, 1 ⅓-hp drive motor
  • Two 3.6-hp compressors, 6.5-hp drive motor
  • Vertically oriented freezing cylinder provides high capacity and maximum energy efficiency
  • Large diameter freezing cylinder facilitates extremely fast freezing times, minimizing ice crystal formation
  • Easy cleaning and effortless assembly of beater parts

Product Specifications

Model Information
Name Value
UPC 671080141459
Unit Dimensions
Name Value
Overall Dimensions (IN) 19-1/2 x 43-1/4 x 27-1/2
(W) Width (IN) 19.5
(D) Depth (IN) 43.25
(H) Height (IN) 27.5
Overall Dimensions (CM) 49.5 x 109.9 x 69.9
(W) Width (CM) 49.5
(D) Depth (CM) 109.9
(H) Height (CM) 69.9
Electrical
Name Value
Frequency (Hz) 60
Hardwired Connection No
Hz 60
Phase 3
Plug Plug not included
Plug Connection Yes
Running Amps 21
Voltage 208-240
Weight
Name Value
Weight (LB) 459
Weight (KG) 208.2
Construction
Name Value
Refrigerant R448A
Frozen Treat: General Specifications
Name Value
Cooling Water
Compressor (Btu/hr) 8906
Number of Drive Motors 1
Drive Motor (hp) 5.44
Number of Freezing Cylinders 1
Number of Freezing Cylinder Compressors 1
Plumbing Fittings Units require 3/4" N.P.T. water and drain fittings.
Frozen Treat: Capacity Specifications
Name Value
Freezing Cylinder Capacity (GAL) 2
Freezing Cylinder Capacity (L) 7.57
Case Lot Measurement
Name Value
Case Width 31
Case Height 60
Case Length 22
