GBU421-309I2

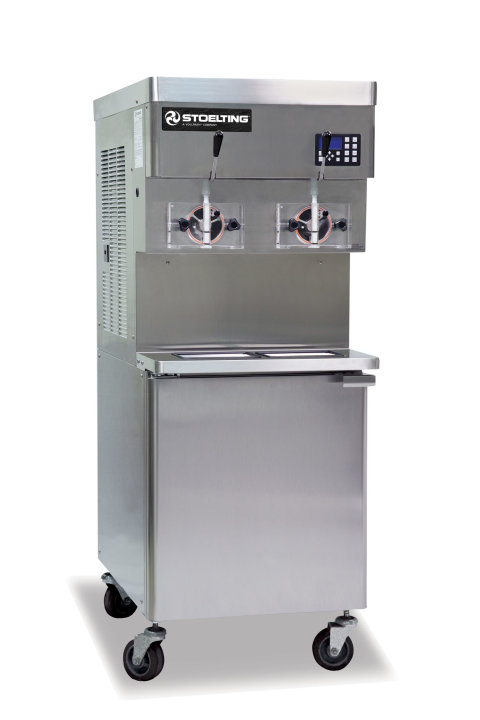

Pressurized Double Cylinder Floor Model
Two-flavor, floor standing, pressure-fed, soft serve/yogurt freezer with refrigerated cabinet. Delivering high-quality consistency from first cone to last, this hardworking floor standing unit easily handles peak demands and is built to last. Cleanup and maintenance are a breeze; the Intellitec2® control provides the ultimate in worry-free operation, and the Energy Conservation Mode (ECM) protects against over agitation.
- Hard-working, floor standing unit handles peak demands, while providing years of dependable service.
- Production capacity: 19 gallons per hour each side.
- Separate refrigeration system keeps cabinet at a safe temperature for storing mix.
- Air / mix pumps deliver the precise amount of air and mix to the freezing cylinder.
- Intellitec2™ controls communicates with the operator for worry-free operation.
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product.
- Long-wearing parts offer lower preventative maintenance costs.
- Clear door provides excellent product visibility and merchandising appeal.
- Self-closing spigot eliminates waste and ensures precise portion control.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419246977 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 26-3/4 x 39-1/2 x 68-3/4 |
| (W) Width (IN) | 26.75 |
| (D) Depth (IN) | 39.5 |
| (H) Height (IN) | 68.75 |
| (W) Width (CM) | 67.9 |
| (D) Depth (CM) | 100.3 |
| (H) Height (CM) | 174.6 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | Yes |
| Plug Connection | No |
| Voltage | 208-240 |
Volume
| Name | Value |
|---|---|
| Output Capacity per Hour per Freezing Cylinder (GAL) | 19 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 785 |
| Weight (KG) | 356.1 |
Construction
| Name | Value |
|---|---|
| Product Function | Soft Serve & Frozen Yogurt Floor Standing Machines |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Number of Drive Motors | 2 |
| Drive Motor (hp) | 2 |
| Number of Freezing Cylinders | 2 |
| Number of Freezing Cylinder Compressors | 2 |
| Freezing Cylinder Compressor (Btu/hr) | 19000 |
| Freezing Cylinder Refrigerant | R448a |
| Cabinet Compressor (Btu/hr) | 1300 |
| Cabinet Refrigerant | R-134a |
| Air Flow | Units require 6" (15.2 cm) air space on all sides and open at the top. |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Freezing Cylinder Capacity (GAL) | 1.33 |
| Freezing Cylinder Capacity (L) | 5.03 |
