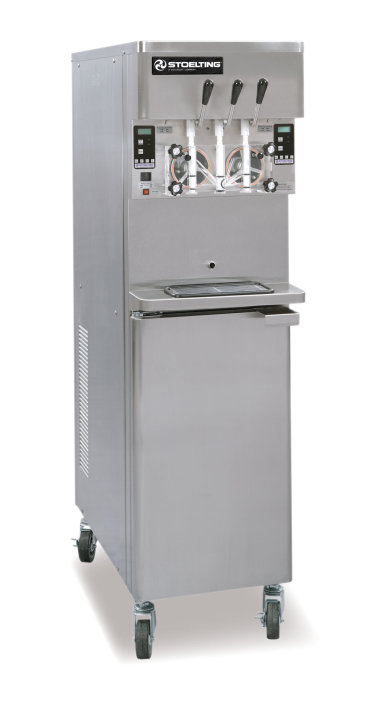

220- to 240-volt air-cooled 1-phase pressurized slim twin-twist soft serve floor model

Twin-Twist, floor standing, gravity-fed, soft serve/yogurt freezer with refrigerated cabinet. Delivering high-quality consistency from first cone to last, this hardworking floor standing unit easily handles peak demands and is built to last. Cleanup and maintenance are a breeze; the Intellitec2® control provides the ultimate in worry-free operation, and the Energy Conservation Mode (ECM) protects against over agitation.

Hard-working, floor standing unit handles peak demands, while providing years of dependable service.
Twist feature allows you to serve two flavors individually or combine flavors for a unique twist.
Production Capaicty: 9.5 gallons per hour.
208-230/60/1 Air
Separate refrigeration system keeps cabinet at a safe temperature for storing mix.
Air / mix pumps deliver the precise amount of air and mix to the freezing cylinders.
Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product.
Long-wearing parts offer lower preventative maintenance costs.
Clear door provides excellent product visibility and merchandising appeal.
Self-closing spigot eliminates waste and ensures precise portion control.

Product Specifications

Model Information

Name	Value
UPC	671080120027

Unit Dimensions

Name	Value
Overall Dimensions (IN)	19-1/8 x 37-3/4 x 67-7/8
(W) Width (IN)	19.12
(D) Depth (IN)	37.75
(H) Height (IN)	67.87
Overall Dimensions (CM)	48.6 x 95.9 x 172.4
(W) Width (CM)	48.6
(D) Depth (CM)	95.9
(H) Height (CM)	172.4

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	Yes
Hz	60
Maximum Overcurrent Protection Device (Per Barrel)	30
Minimum Circuit Ampacity (Per Barrel)	24
Phase	1
Plug Connection	No
Voltage	208-240

Volume

Name	Value
Cabinet Capacity (GAL)	11
Cabinet Capacity (L)	41.6
Ouput Capacity per Hour: Running Both Sides (GAL)	13
Ouput Capacity per Hour: Running One Side (GAL)	9.5

Weight

Name	Value
Weight (LB)	500
Weight (KG)	226.8

Construction

Name	Value
Refrigerant	R448A
Product Function	Soft Serve & Frozen Yogurt Floor Standing Machines

Frozen Treat: General Specifications

Name	Value
Cooling	Air
Compressor (Btu/hr)	11000
Number of Drive Motors	2
Drive Motor (hp)	3/4
Number of Freezing Cylinders	2
Air Flow	Units require 3" (7.6 cm) air space on both sides
