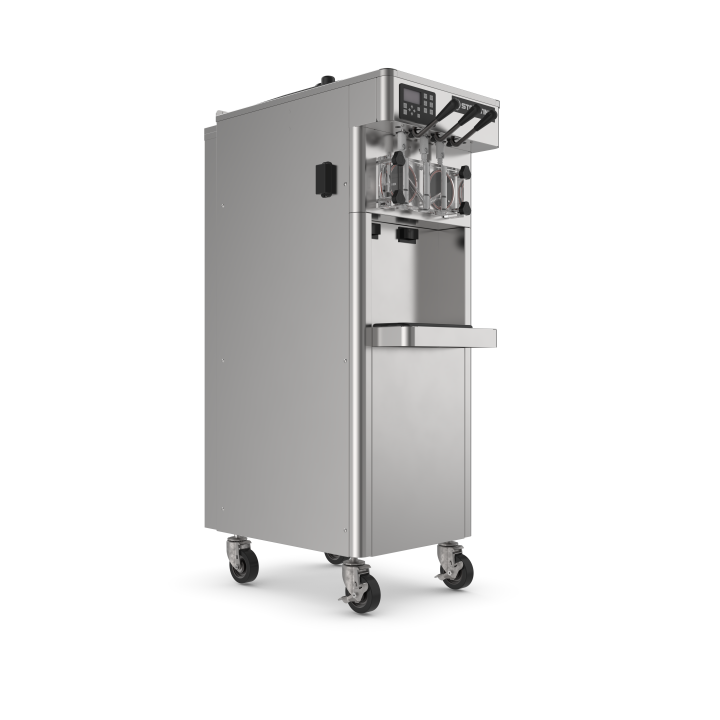

208- to 240-volt 1-phase air-cooled gravity-fed twin-twist soft serve floor machine

Twin-twist, compact floor standing, gravity-fed, soft serve/yogurt freezer. Delivering high-quality consistency from first cone to last, this hardworking floor standing unit easily handles peak demands and is built to last. Cleanup and maintenance are a breeze; the Intellitec2® control provides the ultimate in worry-free operation, and the Energy Conservation Mode (ECM) protects against over agitation.

Compact design with a small footprint saves valuable floor space.
Twist feature allows you to serve two flavors individually or combine flavors for a unique twist.
Hard-working, floor standing unit handles peak demands, while providing years of dependable service.
Production Capacity: 8 gallons per hour.
208-230/60/1 Air
Gravity Fed
IntelliTec2™ control communicates with the operator for worry-free operation.
Energy Conservation Mode (ECM) protects product from over-agitation during slow or non-draw periods.
Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product.
Long-wearing parts offer lower preventative maintenance costs.
Clear door provides excellent product visibility and merchandising appeal.
Self-closing spigot eliminates waste and ensures precise portion control.

Product Specifications

Model Information

Name	Value
UPC	671080567662

Unit Dimensions

Name	Value
Overall Dimensions (IN)	19-1/4 x 31-3/8 x 58-1/4
(W) Width (IN)	19.25
(D) Depth (IN)	31.37
(H) Height (IN)	58.25
Overall Dimensions (CM)	48.9 x 79.7 x 148
(W) Width (CM)	48.9
(D) Depth (CM)	79.7
(H) Height (CM)	148

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	No
Hz	60
Phase	1
Plug	NEMA 6-20P
Plug Connection	Yes
Running Amps	12
Voltage	208-240

Volume

Name	Value
Ouput Capacity per Hour: Running Both Sides (GAL)	11.5
Ouput Capacity per Hour: Running One Side (GAL)	8.5

Weight

Name	Value
Weight (LB)	400
Weight (KG)	181.4

Construction

Name	Value
Refrigerant	R448A
Product Function	Soft Serve & Frozen Yogurt Floor Standing Machines

Frozen Treat: General Specifications

Name	Value
Cooling	Air
Compressor (Btu/hr)	12000
Number of Drive Motors	2
Drive Motor (hp)	3/4
Number of Hoppers	2
Number of Freezing Cylinders	2
Air Flow	Units require 3" (7.6 cm) air space on both sides

Frozen Treat: Capacity Specifications

Name	Value
Hopper Capacity (GAL)	3
Hopper Capacity (L)	11.36
Total Hopper Capacity (GAL)	6
Total Hopper Capacity (L)	22.71
Freezing Cylinder Capacity (GAL)	0.85
Freezing Cylinder Capacity (L)	3.22
