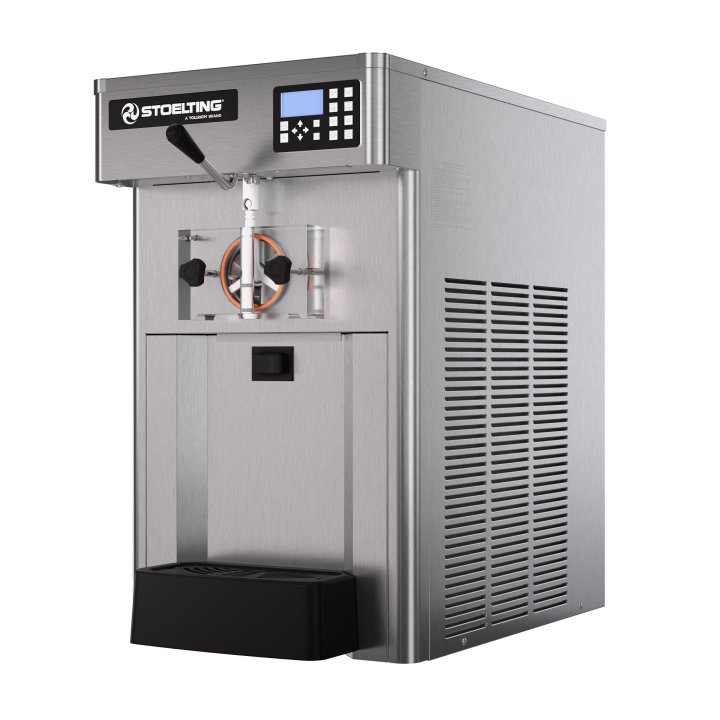

6 ½-gallon 220- to 240-volt 13-amp air-cooled 1-phase gravity-fed single-flavor soft serve countertop machine

Single-flavor, countertop, gravity-fed, soft serve/yogurt freezer. Compact, space-saving unit that can handle peak demands. IntelliTec control for worry-free operation. ECM (Energy Conservation Mode) to prevent over-agitation. Optional floor stand to create a 'floor model' package freeing up counter space and providing additional storage.

Hard-working, compact counter-top unit handles peak demands, while providing years of dependable service.
Production Capacity: 11 gallons per hour.
International: 220-240/50/1 Water
Gravity Fed
IntelliTec2™ control communicates with the operator for worry-free operation.
Energy Conservation Mode (ECM) protects product from over-agitation during slow or non-draw periods.
Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product.
Long-wearing parts offer lower preventative maintenance costs.
Clear door provides excellent product visibility and merchandising appeal.
Self-closing spigot eliminates waste and ensures precise portion control.
Optional floor stand to create a “floor model” package, freeing up counter space and providing additional storage.

Product Specifications

Model Information

Name	Value
UPC	671080613512

Unit Dimensions

Name	Value
Overall Dimensions (IN)	19-3/4 x 32-3/8 x 37-1/8
(W) Width (IN)	19.75
(D) Depth (IN)	32.37
(H) Height (IN)	37.12
(WL) Width between legs	14.75
(DL) Depth between legs	19.875
Overall Dimensions (CM)	50.2 x 82.2 x 94.3
(W) Width (CM)	50.2
(D) Depth (CM)	82.2
(H) Height (CM)	94.3
(WL) Width between legs (CM)	37.5
(DL) Depth between legs (CM)	50.5

Electrical

Name	Value
Frequency (Hz)	50
Hardwired Connection	No
Hz	50
Phase	1
Plug	Plug not included
Plug Connection	Yes
Running Amps	12
Voltage	220-240

Weight

Name	Value
Weight (LB)	385
Weight (KG)	174.6

Construction

Name	Value
Refrigerant	R448A
Product Function	Soft Serve & Frozen Yogurt Countertop Machines

Frozen Treat: General Specifications

Name	Value
Cooling	Water
Compressor (Btu/hr)	11000
Number of Drive Motors	1
Drive Motor (hp)	2
Number of Hoppers	1
Number of Freezing Cylinders	1
Plumbing Fittings	Units require 3/8" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F.

Frozen Treat: Capacity Specifications

Name	Value
Hopper Capacity (GAL)	6.5
Hopper Capacity (L)	24.61
Total Hopper Capacity (GAL)	6.5
Total Hopper Capacity (L)	24.61
Freezing Cylinder Capacity (GAL)	1
Freezing Cylinder Capacity (L)	3.79

Product Accessories

Name	Item #
Steel Frame Floor Stand 22 ¼” x 18 ¾” x 22 1/4”	2202408
Steel Frame Floor Stand with Casters 22” x 31” x 24”	4177350
Steel Frame Floor Stand with Casters 22” x 26” x 24”	4183513
