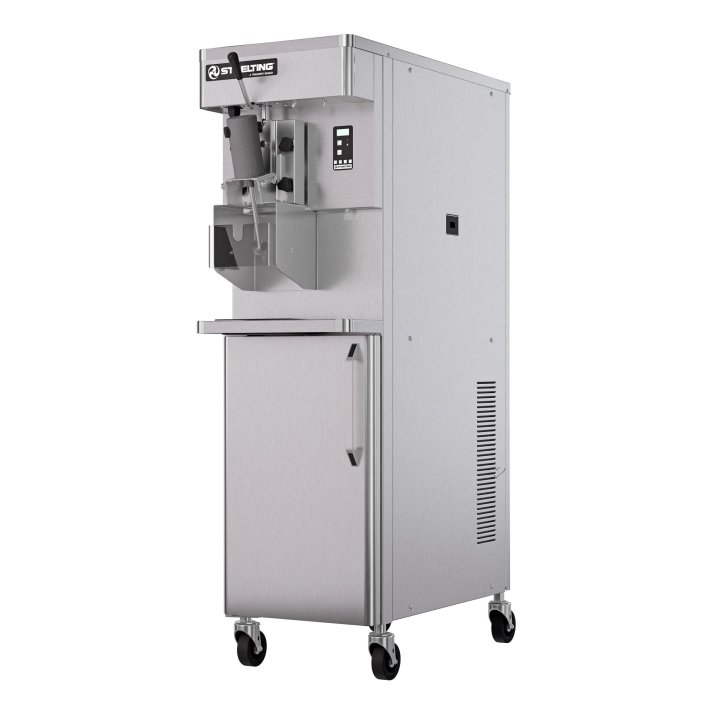

208- to 240-volt 1-phase water-cooled high-capacity combination soft serve and shake machine with refrigerated cabinet and built-in mixer

Deliver consistent, smooth soft-serve from the left and thick, creamy shakes from the right with the ease and versatility of a high-capacity, combination soft serve and shake machine. This 208- to 240-volt, 1-phase, water-cooled unit provides greater reliability and whisper-quiet operation, thanks to the Stoelting® high-efficiency evaporator system and Scroll™ compressor. Meanwhile, the refrigerated mix storage cabinet features a slide-out shelf to hold two 8-gallon-mix containers. Plus, the mix pump injects a precise amount of air into the mix, maintaining consistent overrun and maximizing profitability with clean-in-place simplicity. Our proprietary auger design gently folds mix, preventing product breakdown to produce a smoother, creamier product.

208- to 240-volt, 1-phase, water-cooled
A convenient and cost-effective way to dispense outstanding soft serve from the left side and thick creamy shakes on the right, all in one unit
Enjoy maximum reliability and quieter operation with high-efficiency evaporator and Scroll™ compressor
Refrigerated mix storage cabinet features a slide-out shelf to hold two 8-gallon-mix containers
Mix pump injects a precise amount of air into the mix, maintaining consistent overrun and maximizing profitability with clean-in-place simplicity
Reduces labor with a simple, clean-in-place pump
Proprietary auger design gently folds mix to prevent product breakdown for a smoother, creamier product
Durable, heavy-duty parts reduce maintenance costs

Product Specifications

Model Information

Name	Value
UPC	671080522135

Unit Dimensions

Name	Value
Overall Dimensions (IN)	19 x 38-5/8 x 67-1/4
(W) Width (IN)	19
(D) Depth (IN)	38.62
(H) Height (IN)	67.25
Overall Dimensions (CM)	48.3 x 98.1 x 170.8
(W) Width (CM)	48.3
(D) Depth (CM)	98.1
(H) Height (CM)	170.8

Electrical

Name	Value
Frequency (Hz)	50
Hardwired Connection	Yes
Hz	50
Maximum Overcurrent Protection Device (Per Barrel)	30
Minimum Circuit Ampacity (Per Barrel)	19
Phase	1
Plug Connection	No
Voltage	220-240

Volume

Name	Value
Cabinet Capacity (GAL)	8
Cabinet Capacity (L)	30.3

Weight

Name	Value
Weight (LB)	450
Weight (KG)	204.1

Construction

Name	Value
Refrigerant	R448A

Frozen Treat: General Specifications

Name	Value
Cooling	Air
Compressor (Btu/hr)	11000
Number of Drive Motors	1
Drive Motor (hp)	3/4
Number of Freezing Cylinders	1
Number of Freezing Cylinder Compressors	1
Air Flow	Units require 3" (7.6 cm) air space on both sides and 6" at the back.
