SF144X-302I2
208- to 240-volt 1-phase 60-Hz air-cooled high-capacity frozen beverage dispenser

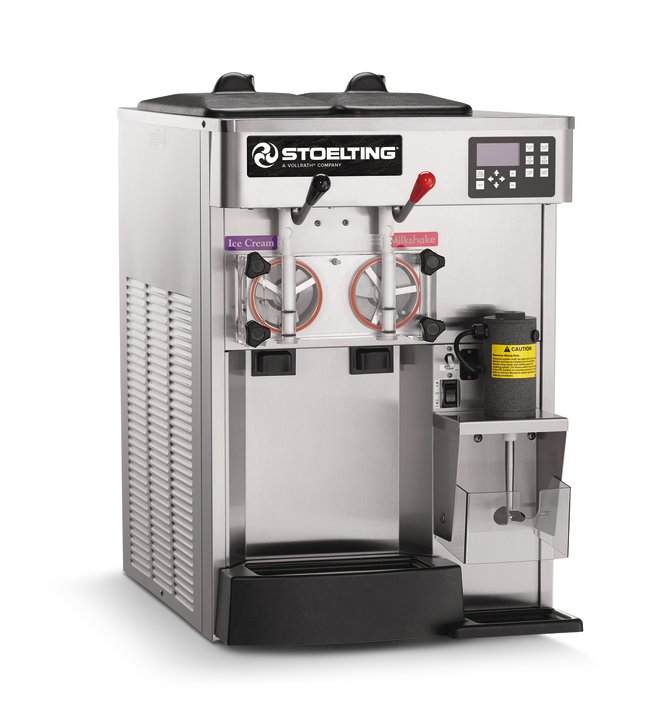

Combination countertop soft serve & milkshake, gravity fed freezer with attached spinner. Two-in-one space-saving unit that can diversify your menu and handle peak demands. IntelliTec control for worry-free operation. ECM (Energy Conservation Mode) to prevent over-agitation. Optional floor stand to create a 'floor model' package freeing up counter space and providing additional storage.
- A convenient and cost-effective way to dispense outstanding soft serve from the left side and thick creamy shakes on the right, all in one unit
- Hard-working, counter-top unit handles peak demands, while providing years of dependable service.
- Production Capacity: 8 gallons soft serve per hour, 11 gallons milkshake per hour
- International: 220-240/50/1 Air
- Gravity Fed
- IntelliTec2™ control communicates with the operator for worry-free operation.
- Energy Conservation Mode (ECM) protects product from over-agitation during slow or non-draw periods.
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product.
- Long-wearing parts offer lower preventative maintenance costs.
- Clear door provides excellent product visibility and merchandising appeal.
- Self-closing spigot eliminates waste and ensures precise portion control
- Optional floor stand to create a “floor model” package, freeing up counter space and providing additional storage.
- Attached spinner conveniently blends syrups or mix-ins.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080522111 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 22 x 28-1/2 x 34-3/4 |
| (W) Width (IN) | 22 |
| (D) Depth (IN) | 28.5 |
| (H) Height (IN) | 34.75 |
| (WL) Width between legs | 15.5 |
| (DL) Depth between legs | 16.25 |
| Overall Dimensions (CM) | 55.9 x 72.4 x 88.3 |
| (W) Width (CM) | 55.9 |
| (D) Depth (CM) | 72.4 |
| (H) Height (CM) | 88.3 |
| (WL) Width between legs (CM) | 39.4 |
| (DL) Depth between legs (CM) | 41.3 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 50 |
| Hardwired Connection | No |
| Hz | 50 |
| Phase | 1 |
| Plug | Plug not included |
| Plug Connection | Yes |
| Running Amps | 16 |
| Voltage | 220-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 385 |
| Weight (KG) | 174.6 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
| Product Function | Combination Soft Serve & Milkshake Countertop Machines |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 2 |
| Drive Motor (hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Air Flow | Units require 3" (7.6 cm) air space on both sides |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 3 |
| Hopper Capacity (L) | 11.36 |
| Total Hopper Capacity (GAL) | 6 |
| Total Hopper Capacity (L) | 22.71 |
| Freezing Cylinder Capacity (GAL) | 0.85 |
| Freezing Cylinder Capacity (L) | 3.22 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 42 |
| Case Height | 45 |
| Case Length | 30 |
