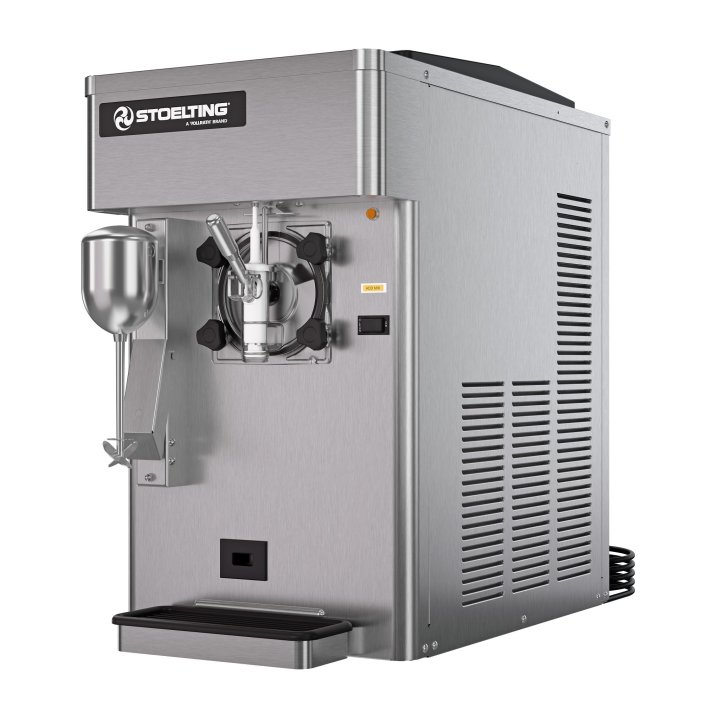

208- to 240-volt single-phase water-cooled gravity-fed single-flavor shake or slush countertop machine

SF112-18

208- to 240-volt single-phase water-cooled gravity-fed single-flavor shake or slush countertop machine

Name: 208- to 240-volt single-phase water-cooled gravity-fed single-flavor shake or slush countertop machine
Brand: Stoelting Foodservice

Where to Buy

Request A Quote Where to Buy

Quickly and easily serve up delicious frozen beverages, shakes, or smoothies with the Stoelting gravity-fed single-flavor countertop machine, featuring a 3-gallon hopper and a 1-gallon freezing cylinder. This 208- to 240-volt space-saving countertop machine is quiet and compact, yet it is mighty enough to keep up with peak demand. Its clear door shows moving product for merchandising appeal, and the simple design features minimal removable parts, making cleaning and assembly a snap.

Compact, space-saver unit, offers the convenience to serve frozen beverages, shakes, smoothies or frozen cocktails.
One selector switch, auto-off-clean, for simplified operation and cleaning.
Low mix warning light with electronic controls are auto-fill ready.
Stainless steel auger, heavy-duty speed reducer, 1/3 hp drive motor for long life dependability.
Stator bar agitates frozen beverage mixes with a wide range of sugar content (Brix measurement).

Product Specifications

Model Information

Name	Value
UPC	671080869001

Unit Dimensions

Name	Value
Overall Dimensions (IN)	17-1/4 x 30-1/4 x 33
(W) Width (IN)	17.25
(D) Depth (IN)	30.25
(H) Height (IN)	33
(WL) Width between legs	13.5
(DL) Depth between legs	20.875
Overall Dimensions (CM)	43.8 x 76.8 x 83.8
(W) Width (CM)	43.8
(D) Depth (CM)	76.8
(H) Height (CM)	83.8
(WL) Width between legs (CM)	34.3
(DL) Depth between legs (CM)	53
Size	2.13

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	No
Hz	60
Phase	1
Plug	NEMA 6-15P
Plug Connection	Yes
Running Amps	9
Voltage	208-240

Weight

Name	Value
Weight (LB)	288
Weight (KG)	130.6

Construction

Name	Value
Refrigerant	R448A

Frozen Treat: General Specifications

Name	Value
Cooling	Water
Compressor (Btu/hr)	8000
Number of Drive Motors	1
Drive Motor (hp)	3/4
Number of Hoppers	1
Number of Freezing Cylinders	1
Plumbing Fittings	Units require 3/8" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM per barrel. Ideal EWT of 50°-70°F.

Frozen Treat: Capacity Specifications

Name	Value
Hopper Capacity (GAL)	5.38
Hopper Capacity (L)	20.37
Total Hopper Capacity (GAL)	5.38
Total Hopper Capacity (L)	20.37
Freezing Cylinder Capacity (GAL)	2.12
Freezing Cylinder Capacity (L)	8.03
