E112X-302

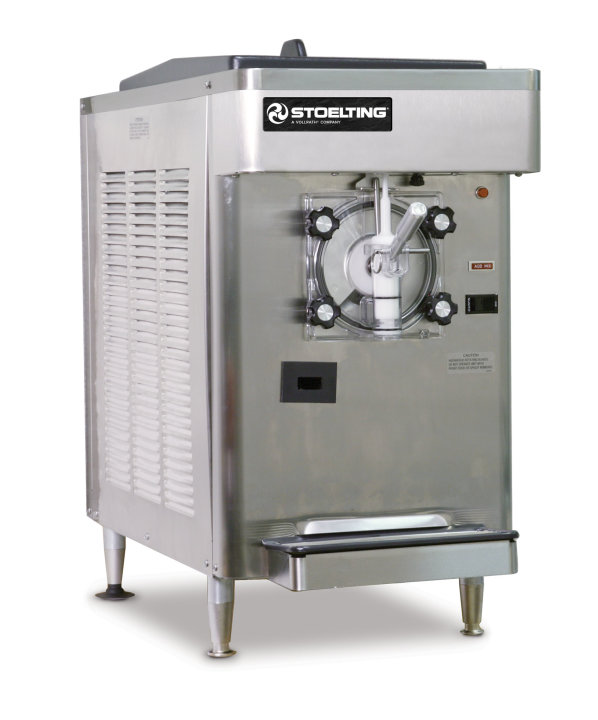

1.2-gallon 220- to 240-volt air-cooled gravity-fed single-flavor countertop shake or slush freezer
Serve frozen beverages, shakes, smoothies and frozen cocktails with this single-flavor, jack-of-all-trades frozen treat machine. Boasting a 4,250-BTU/hr compressor and a 1.2-gallon freezing cylinder volume, the 220- to 240-volt Stoelting single-flavor countertop shake or slush freezer offers the convenience of product versatility, without sacrificing quality or ease of use. Operation could not be easier with its single auto-off-clean selector switch. And thanks to its high-capacity refrigeration system, this compact powerhouse delivers volumes of shakes or frozen beverages, even in high temperatures.
- Compact, 220- to 240-volt model offers the versatility of frozen beverages, shakes, smoothies and frozen cocktails
- One selector switch, auto-off-clean, for simplified operation and cleaning
- High-capacity refrigeration system with a 5,500-BTU/hr compressor results in high-level shake and frozen beverage production
- Intellitec2 control delivers clear communication for peace of mind
- ECM prevents over agitation during slow or nondraw periods
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Clear door provides excellent product visibility and merchandising appeal
- Self-closing spigot eliminates waste and ensures precise portion control
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080522302 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15-1/4 x 32 x 30-1/2 |
| (W) Width (IN) | 15.25 |
| (D) Depth (IN) | 32 |
| (H) Height (IN) | 30.5 |
| (WL) Width between legs | 13.5 |
| (DL) Depth between legs | 20.875 |
| Overall Dimensions (CM) | 38.7 x 81.3 x 77.5 |
| (W) Width (CM) | 38.7 |
| (D) Depth (CM) | 81.3 |
| (H) Height (CM) | 77.5 |
| (WL) Width between legs (CM) | 34.3 |
| (DL) Depth between legs (CM) | 53 |
| Size | 1.2 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 50 |
| Hardwired Connection | No |
| Hz | 50 |
| Phase | 1 |
| Plug | Plug not included |
| Plug Connection | Yes |
| Running Amps | 10 |
| Voltage | 220-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 205 |
| Weight (KG) | 93 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 4500 |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 1/3 |
| Number of Hoppers | 1 |
| Number of Freezing Cylinders | 1 |
| Air Flow | Units require 3" (7.6 cm) air space on both sides or 4" (10.2 cm) air space in back for side-by-side installation |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 3.63 |
| Hopper Capacity (L) | 13.74 |
| Total Hopper Capacity (GAL) | 3.63 |
| Total Hopper Capacity (L) | 13.74 |
| Freezing Cylinder Capacity (GAL) | 1.25 |
| Freezing Cylinder Capacity (L) | 4.73 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 36 |
| Case Height | 42 |
| Case Length | 24 |
Product Accessories
| Name | Item # |
|---|---|
| 115-volt 1-phase dial-control hand-operated mix-in blender | 521005 |
| 115-volt 1-phase foot-operated mix-in blender | 521019 |
| 200- to 240-volt mix in blender with foot switch | 521030 |
| 200- to 240-volt mix in blender with mounted speed control | 521035 |
| Steel Frame Floor Stand 22 ¼” x 18 ¾” x 22 1/4” | 2202408 |
| Steel Frame Floor Stand with Casters 22” x 31” x 24” | 4177350 |
| Steel Frame Floor Stand with Casters 22” x 26” x 24” | 4183513 |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
