SCBF168-302

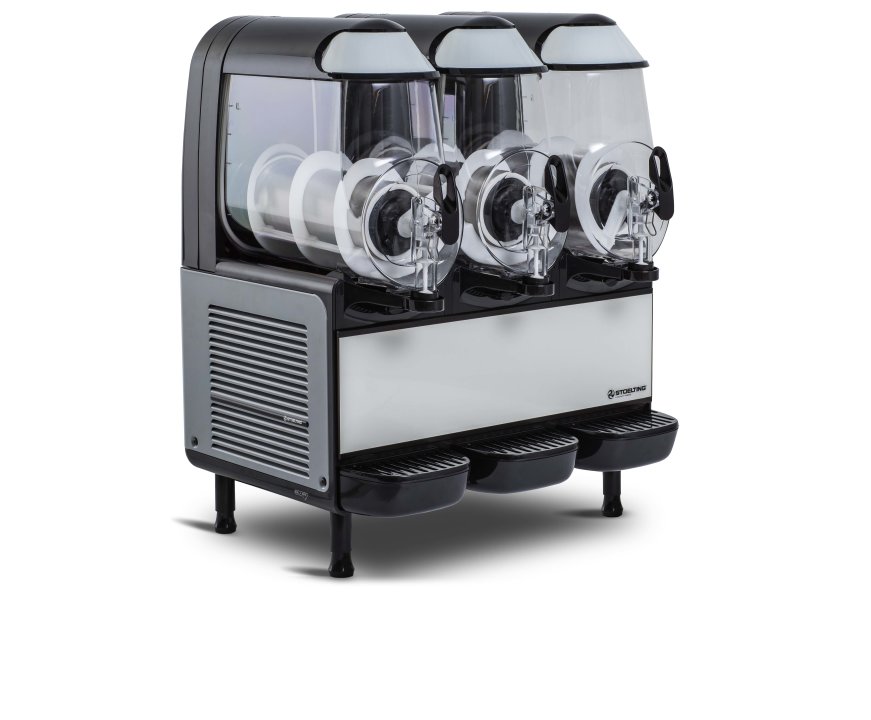

Frozen Beverage Dispenser International Version Three 10 Liter Bowls
Effortless to operate and maintain, this frozen beverage dispenser with three 10 liter bowls is designed for frozen granitas and dairy-based drinks including iced or frozen coffee or tea, frozen cocktails, smoothies and more. Along with years of dependable service, this professional-grade machine offers valuable menu flexibility, operational efficiency and consistent product quality.
- Three 10 Liter Bowls
- 220- to 240-volt, 5.1-amp, 50Hz, 2,800 Btu/hr
- Magnetic drive system is reliable, durable and easy-to-use
- Digital control features customizable settings for consistent results and menu flexibility
- Built-in timer automatically places machine in nigh mode
- Gasketless spigot is easy-to-clean and maintain
- Standard, double-wall bowls prevent condensation on unit exterior
- Robust compressor reduces freeze-down time and promotes efficient operation
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080951058 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23-5/8 x 18-7/8 x 27-7/8 |
| (W) Width (IN) | 23.62 |
| (D) Depth (IN) | 18.87 |
| (H) Height (IN) | 27.87 |
| (WL) Width between legs | 20.5 |
| (DL) Depth between legs | 11.375 |
| Overall Dimensions (CM) | 60 x 47.9 x 70.8 |
| (W) Width (CM) | 60 |
| (D) Depth (CM) | 47.9 |
| (H) Height (CM) | 70.8 |
| (WL) Width between legs (CM) | 52.1 |
| (DL) Depth between legs (CM) | 28.9 |
| Size | 10 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 50 |
| Hardwired Connection | No |
| Hz | 50 |
| Phase | 1 |
| Plug | Schuko |
| Plug Connection | Yes |
| Running Amps | 5.1 |
| Voltage | 220-240 |
Volume
| Name | Value |
|---|---|
| Bowl Capacity (GAL) | 2.64 |
| Bowl Capacity (L) | 10 |
| Total Bowl Capacity (GAL) | 7.92 |
| Total Bowl Capacity (L) | 30 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 134 |
| Weight (KG) | 60.8 |
Construction
| Name | Value |
|---|---|
| Number of Bowls | 3 |
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 2800 |
| Number of Drive Motors | 3 |
| Drive Motor (hp) | 1/18 |
| Number of Freezing Cylinders | 3 |
| Air Flow | Units require 6" (15.24 cm) air space on all sides |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
