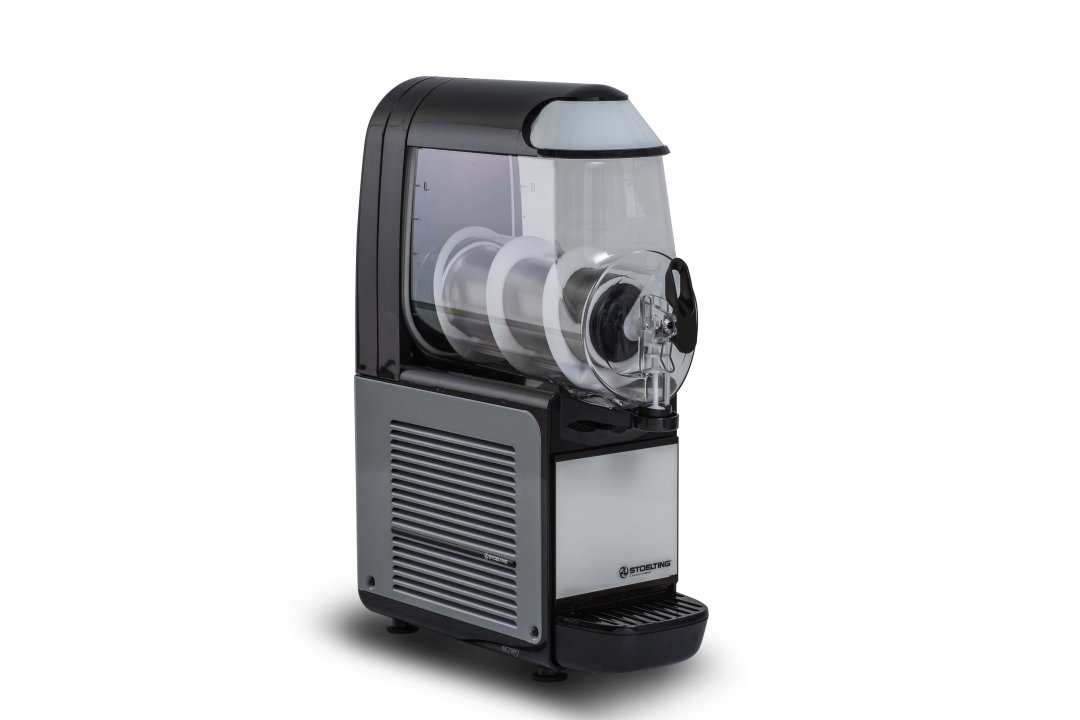

Frozen Beverage Dispenser International Version One 10 Liter Bowl

Effortless to operate and maintain, this frozen beverage dispenser with one 10-liter bowl is designed for frozen granitas and dairy-based drinks including iced or frozen coffee or tea, frozen cocktails, smoothies and more. Along with years of dependable service, this professional-grade machine offers valuable menu flexibility, operational efficiency and consistent product quality.

One 10-liter bowl
220- to 240-volt, 2.4-amp, 50Hz, 1,200 Btu/hr
Magnetic drive system is reliable, durable and easy to use
Digital control features customizable settings for consistent results and menu flexibility
Built-in timer automatically places machine in night mode
Gasketless spigot is easy to clean and maintain
Standard, double-wall bowls prevent condensation on unit exterior
Robust compressor reduces freeze-down times and promotes efficient operation

Product Specifications

Model Information

Name	Value
UPC	671080951034

Unit Dimensions

Name	Value
Overall Dimensions (IN)	7-7/8 x 18-7/8 x 27-7/8
(W) Width (IN)	7.87
(D) Depth (IN)	18.87
(H) Height (IN)	27.87
(WL) Width between legs	5
(DL) Depth between legs	11.375
Overall Dimensions (CM)	20 x 47.9 x 70.8
(W) Width (CM)	20
(D) Depth (CM)	47.9
(H) Height (CM)	70.8
(WL) Width between legs (CM)	12.7
(DL) Depth between legs (CM)	28.9
Size	10

Electrical

Name	Value
Frequency (Hz)	50
Hardwired Connection	No
Hz	50
Phase	1
Plug	Schuko
Plug Connection	Yes
Running Amps	2.4
Voltage	220-240

Volume

Name	Value
Bowl Capacity (GAL)	2.64
Bowl Capacity (L)	10
Total Bowl Capacity (GAL)	2.64
Total Bowl Capacity (L)	10

Weight

Name	Value
Weight (LB)	55
Weight (KG)	24.9

Construction

Name	Value
Number of Bowls	1
Refrigerant	R448A

Frozen Treat: General Specifications

Name	Value
Cooling	Air
Compressor (Btu/hr)	1200
Number of Drive Motors	1
Drive Motor (hp)	1/18
Number of Freezing Cylinders	1
Air Flow	Units require 6" (15.24 cm) air space on all sides
