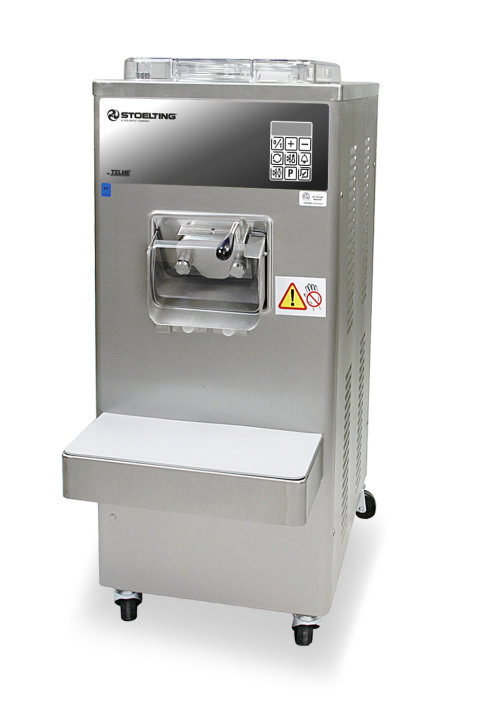

VB35-109A
208- to 240-volt 3-phase water-cooled 2.5-6 quart vertical batch freezer
Enjoy a perfect combination of high-capacity performance and maximum energy efficiency with this vertical batch freezer. Rugged and reliable, this 208- to 240-volt, 3-phase, water-cooled unit produces approximately 2.5-6 quarts of product. Simple to operate and easy to maintain, it will ensure perfect, premium ice cream, gelato, custard, sherbet, sorbet or water ices every time.
- 208- to 240-volt, 1-phase, water-cooled,
- 3.6-hp compressor, 2.7-hp drive motor
- Vertically-oriented freezing cylinder provides high capacity and maximum energy efficiency
- Large diameter freezing cylinder facilitates extremely fast freezing times, minimizing ice crystal formation
- Easy cleaning and effortless assembly of beater parts
- Affordable, heavy-duty plastic beater blades minimize frequent, costly blade replacement
- Heavy-duty stainless-steel beater shaft is built to withstand years of use
- Clear, acrylic freezing cylinder cover allows operator to monitor product during freezing process
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080141435 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 19-1/2 x 43-1/4 x 23-3/4 |
| (W) Width (IN) | 19.5 |
| (D) Depth (IN) | 43.25 |
| (H) Height (IN) | 23.75 |
| Overall Dimensions (CM) | 49.5 x 109.9 x 60.3 |
| (W) Width (CM) | 49.5 |
| (D) Depth (CM) | 109.9 |
| (H) Height (CM) | 60.3 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 3 |
| Plug | Plug not included |
| Plug Connection | Yes |
| Running Amps | 14 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 353 |
| Weight (KG) | 160.1 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Water |
| Compressor (Btu/hr) | 4580 |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 2.7 |
| Number of Freezing Cylinders | 1 |
| Number of Freezing Cylinder Compressors | 1 |
| Plumbing Fittings | Units require 3/4" N.P.T. water and drain fittings. |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Freezing Cylinder Capacity (GAL) | 1.5 |
| Freezing Cylinder Capacity (L) | 5.68 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 22 |
| Case Height | 60 |
| Case Length | 27 |
