VB1-37A

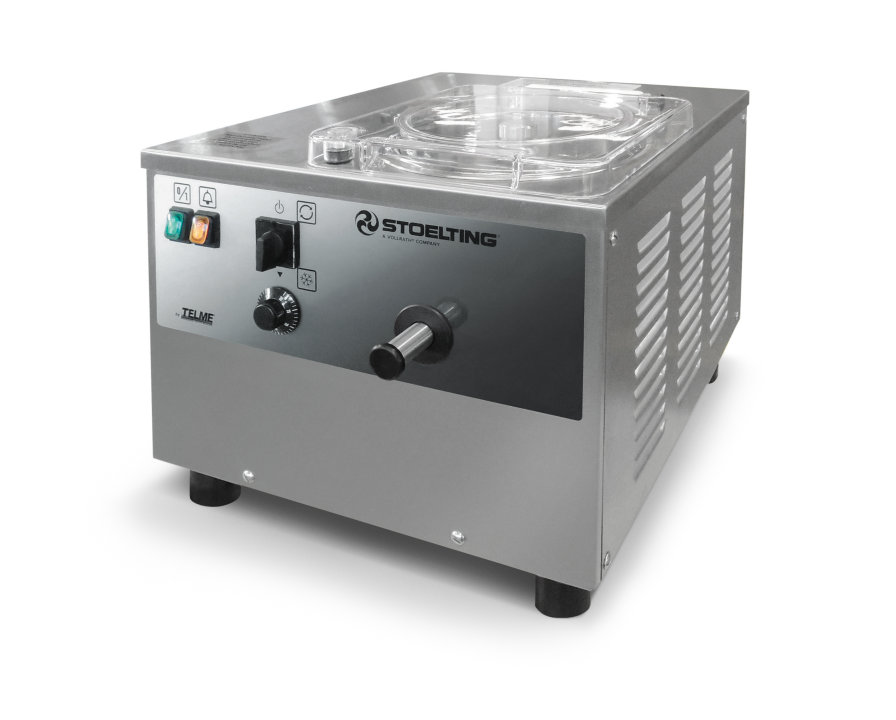

115-volt single-phase air-cooled vertical batch freezer with 1/2-hp motor
Enjoy a perfect combination of high-capacity performance and maximum energy efficiency with this countertop vertical batch freezer. Rugged and reliable, this 115-volt, single-phase, air-cooled unit produces approximately 1-2quarts of product per hour. Simple to operate and easy to maintain, it will ensure perfect, premium ice cream, gelato, custard, sherbet, sorbet or water ices every time.
- 208- to 240-volt, 3-phase, air-cooled
- 1.8-hp compressor, 2.7-hp drive motor
- Vertically oriented freezing cylinder provides high capacity and maximum energy efficiency
- Large diameter freezing cylinder facilitates extremely fast freezing times, minimizing ice crystal formation
- Easy cleaning and effortless assembly of beater parts
- Affordable, heavy-duty plastic beater blades minimize frequent, costly blade replacement
- Heavy-duty stainless-steel beater shaft is built to withstand years of use
- Clear, acrylic freezing cylinder cover allows operator to monitor product during freezing process
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080613567 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 20 x 16-1/8 x 22 |
| (W) Width (IN) | 20 |
| (D) Depth (IN) | 16.12 |
| (H) Height (IN) | 22 |
| Overall Dimensions (CM) | 50.8 x 41 x 55.9 |
| (W) Width (CM) | 50.8 |
| (D) Depth (CM) | 41 |
| (H) Height (CM) | 55.9 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-20P |
| Plug Connection | Yes |
| Running Amps | 12.3 |
| Voltage | 115 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 133 |
| Weight (KG) | 60.3 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 1527 |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 0.5 |
| Number of Freezing Cylinders | 1 |
| Number of Freezing Cylinder Compressors | 1 |
| Air Flow | Units require 19" air space on both sides and back |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Freezing Cylinder Capacity (GAL) | 0.5 |
| Freezing Cylinder Capacity (L) | 1.89 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 28 |
| Case Height | 29 |
| Case Length | 25 |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
