285113

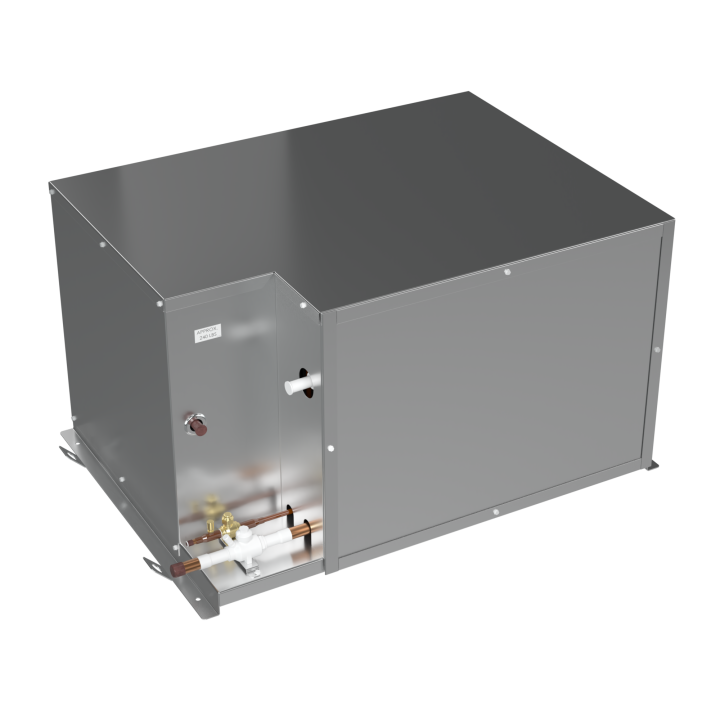

Remote Condensing Unit for CC303 without quick connects
Stoelting® Remote Condensing Units are designed for use with Medium to High Capacity Custard Machines. One condenser is required for each freezing cylinder.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419234004 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 43.24 |
| (W2) Secondary Width (IN) | 38.83 |
| (D) Depth (IN) | 29.07 |
| (D2) Secondary Depth (IN) | 23.5 |
| (H) Height (IN) | 22.41 |
| (WB) Width of Body (IN) | 38.31 |
| (W) Width (CM) | 109.83 |
| (W2) Secondary Width (CM) | 98.63 |
| (D) Depth (CM) | 73.84 |
| (D2) Secondary Depth (CM) | 59.69 |
| (H) Height (CM) | 56.92 |
| (WB) Width of Body (CM) | 97.31 |
Electrical
| Name | Value |
|---|---|
| Hz | 60 |
| Phase | 3 |
| Voltage | 208 - 230 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
