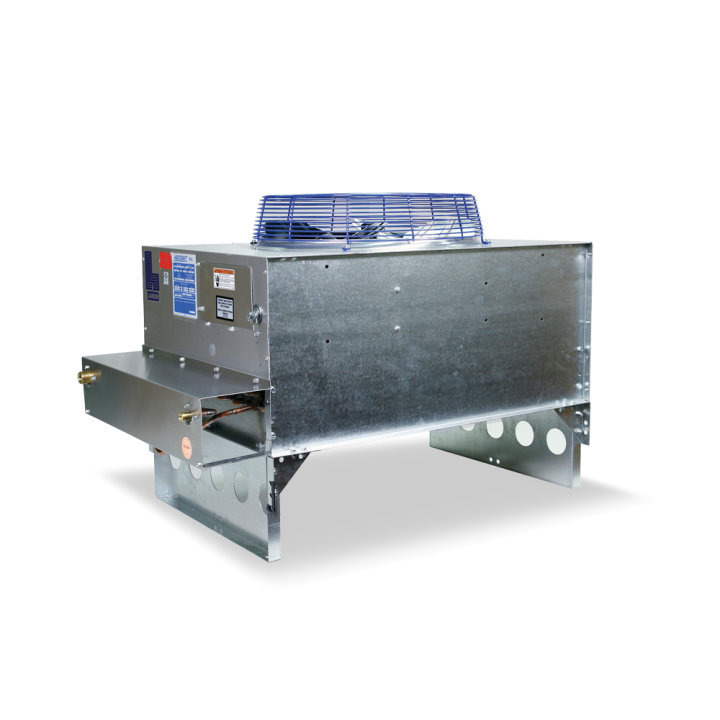

Remote Condenser and Line Sets
Remote Condensers and Line Sets for Ultra High Capacity Freezers.
- For models U431 and U421 with quick connect fittings.
- Optional pre-charged line sets with eight feet of flexible tubing allow freezer to be moved for cleaning; available in 43 foot and 58 foot lengths.
- One condenser required for each freezing cylinder.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080156347 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 37-1/2 x 22 x 24-1/2 |
| (W) Width (IN) | 37.5 |
| (D) Depth (IN) | 22 |
| (H) Height (IN) | 24.5 |
| Overall Dimensions (CM) | 95.3 x 55.9 x 62.2 |
| (W) Width (CM) | 95.3 |
| (D) Depth (CM) | 55.9 |
| (H) Height (CM) | 62.2 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hz | 60 |
| Phase | 1 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 96 |
| Weight (KG) | 43.5 |
Construction
| Name | Value |
|---|---|
| Air Remote Connections | Remote condenser connections are 7/8" ID inlet and 5/8" ID outlet |
| Refrigerant | R448A |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 19.5 |
| Case Height | 23 |
| Case Length | 40.5 |
