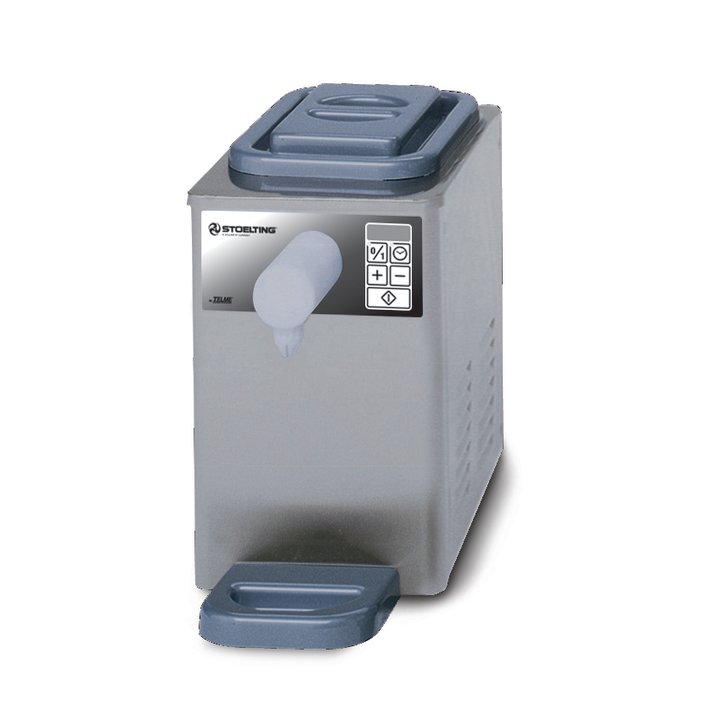

Countertop Whipped Crème Dispenser 5 ¼ - quart, 115-Volt, Air-Cooled

CW5-37B

Countertop Whipped Crème Dispenser 5 ¼ - quart, 115-Volt, Air-Cooled

Easy to clean and effortless to operate, this countertop whipped crème dispenser makes a huge impact with a small footprint. No chemical additives or propellants. Simply pour liquid cream into the hopper, and press the dispense button to deliver consistent product texture every time.

  • 5 ¼-quart, 115-volt, air-cooled
  • 105 quarts output per hour or 26-gallons output per hour
  • No chemical additives or propellants
  • Easy to own, use and maintain
  • No chemical additives or propellants
  • Compact design requires 12-inches clearance at the back, sitting flush to the wall for optimal countertop usage
  • Air-cooled, 115-volt, 8-amp
  • Adjustable dispense rate for optimal product output

Product Specifications

Model Information
Name Value
UPC 029419972500
Unit Dimensions
Name Value
Overall Dimensions (IN) 10 x 18-1/2 x 18
(W) Width (IN) 10
(D) Depth (IN) 18.5
(H) Height (IN) 18
Overall Dimensions (CM) 25.4 x 47 x 45.7
(W) Width (CM) 25.4
(D) Depth (CM) 47
(H) Height (CM) 45.7
Electrical
Name Value
Frequency (Hz) 60
Hardwired Connection No
Hz 60
Phase 1
Plug NEMA 5-15P
Plug Connection Yes
Running Amps 8
Voltage 115
Weight
Name Value
Weight (LB) 70
Weight (KG) 31.8
Construction
Name Value
Refrigerant R-134a
Frozen Treat: General Specifications
Name Value
Cooling Air
Compressor (Btu/hr) 290
Number of Drive Motors 1
Drive Motor (hp) 0.4
Number of Hoppers 1
Air Flow Units require 12" (30.5 cm) air space at the back
Frozen Treat: Capacity Specifications
Name Value
Hopper Capacity (GAL) 1.32
Hopper Capacity (L) 5
Total Hopper Capacity (GAL) 1.32
Total Hopper Capacity (L) 5
Case Lot Measurement
Name Value
Case Width 14.5
Case Height 22
Case Length 22

Warranty Information

Terms of Sale

Product Downloads

Resource preview Whipped Cream Dispenser, CW5 - Operator's Manual (English)
Resource preview Stoelting Foodservice Frozen Treat Equipment - Brochure (English)
Resource preview Stoelting Foodservice Frozen Treat Equipment - Brochure (French)

Stoelting product CAD drawings

Stoelting product CAD drawings

Click below to view the most up-to-date list of Stoelting products and CAD drawings.

View CAD Files

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM

Customer Questions

Be the first to ask a question
