GCCD-BR66-37-WP

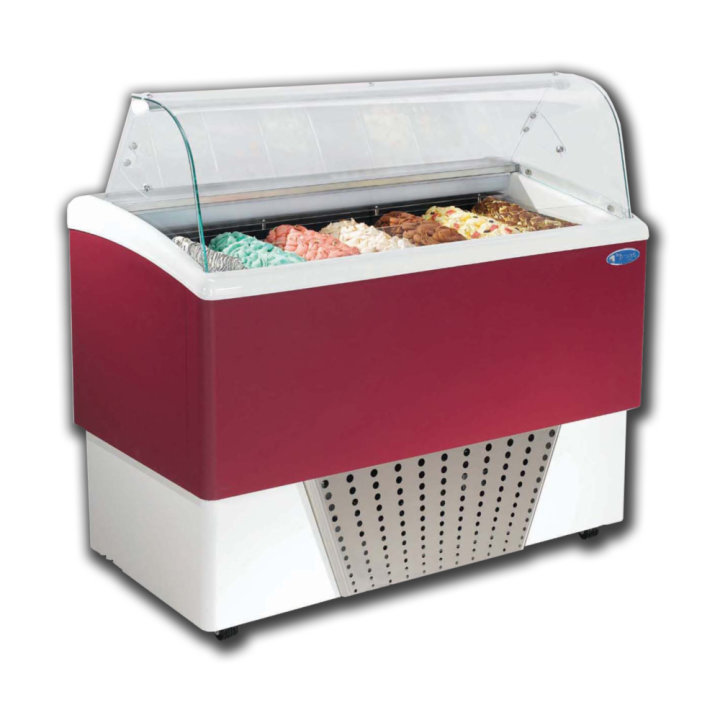

Display Cabinets
A variety of showcase gelato cases to display your product, whether requirements are for a large display or compact to meet the need for a smaller space.
- Holds up to 12 4.25-liter pans or up to eight 5-liter pans.
- Forced air cooling.
- Automatic hot gas defrost.
- Curved front glass.
- Casters standard.
- Compact design saves valuable counter space.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080836874 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 46-5/8 x 30-3/8 x 48-1/4 |
| (W) Width (IN) | 46.62 |
| (D) Depth (IN) | 30.37 |
| (H) Height (IN) | 48.25 |
| Overall Dimensions (CM) | 118.4 x 77.2 x 122.6 |
| (W) Width (CM) | 118.4 |
| (D) Depth (CM) | 77.2 |
| (H) Height (CM) | 122.6 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-15P |
| Plug Connection | Yes |
| Running Amps | 6.36 |
| Voltage | 115 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 254 |
| Weight (KG) | 115.2 |
Construction
| Name | Value |
|---|---|
| Color | White |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 48 |
| Case Height | 63 |
| Case Length | 33 |
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
